Garmin

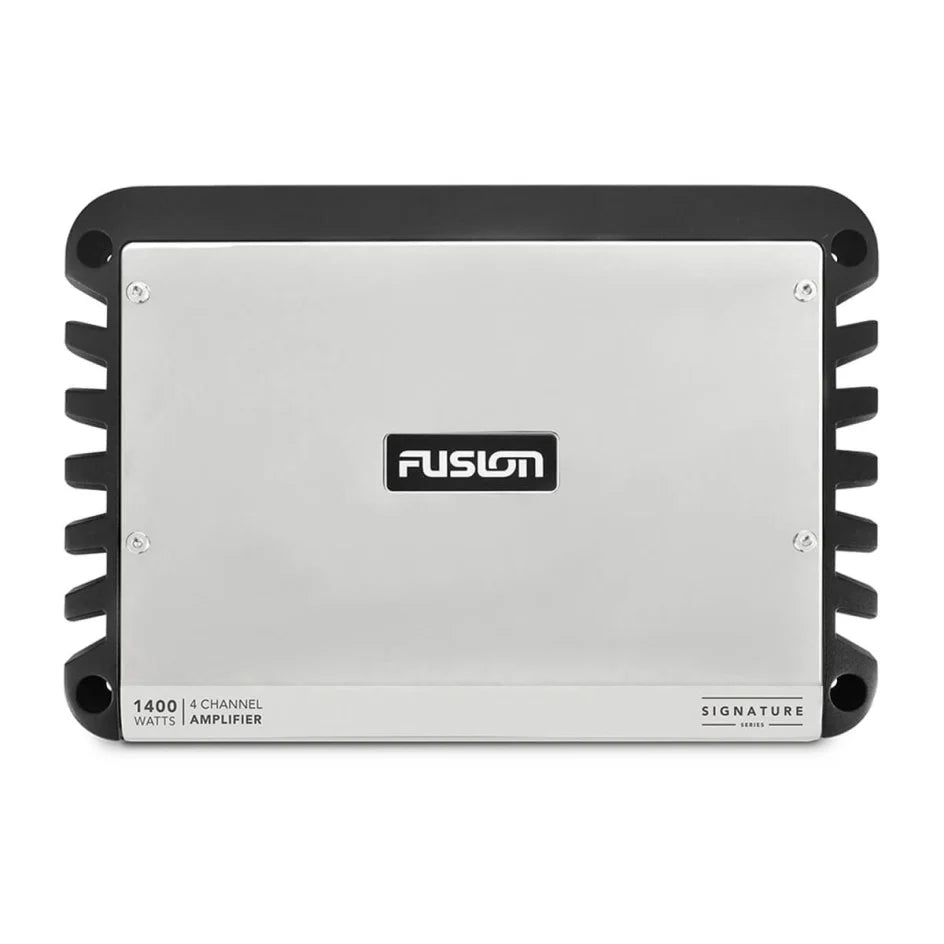

Fusion Signature Series 4 Channel 1400-Watt Marine Amplifier
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
Purpose-built for the marine environment, the Fusion Signature Series amplifier features some of the most impressive environmental protection available, delivering a signature performance out on the water. This 4-channel Class-D amplifier drives up to four speakers with 150 W RMS per channel at 4 ohms, and can be bridged to two channels for extra headroom, giving a Signature Series system genuine hi-fi output.
Efficient Class-D circuitry keeps current draw and heat low while a conformal-coated board and rugged construction resist the salt, humidity and vibration of the marine environment. User-adjustable input sensitivity lets you match the amplifier cleanly to your Fusion stereo for the best possible sound across the boat.
PRODUCT DETAILS
- Four-channel Class-D design delivering 150 W RMS per channel at 4 ohms, 1400 W peak
- Bridgeable to two 440 W RMS channels for driving subwoofers or larger speakers
- Wide 10 Hz to 100 kHz frequency response for detailed, full-range sound
- User-adjustable input sensitivity for a clean match to any Fusion marine stereo
- Marinised, conformal-coated build resists salt, humidity and vibration on board
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Amplifier
| Channels | 4 |
| Power per channel (RMS) at 4 Ω | 150 W x 4, <1% THD+N |
| Power per channel (RMS) at 2 Ω | 220 W x 4, <1% THD+N |
| Power bridged (RMS) at 4 Ω | 440 W x 2 |
| Total power (peak) | 1400 W |
| Class | Class-D |
| Frequency response | 10 Hz - 100 kHz |
| THD | <1% THD+N at rated power |
| Input sensitivity | 0.3 V - 8 V RMS, user adjustable |
| Input impedance | 7 kΩ nominal |
Electrical
| Supply voltage | 12 V DC (10.8 V - 16 V) |
| Fuse rating | 2 x 40 A ATC blade type |
Installation
| Dimensions (W x D x H) | 300 x 210 x 50 mm |
General
| Warranty | 2 years |
