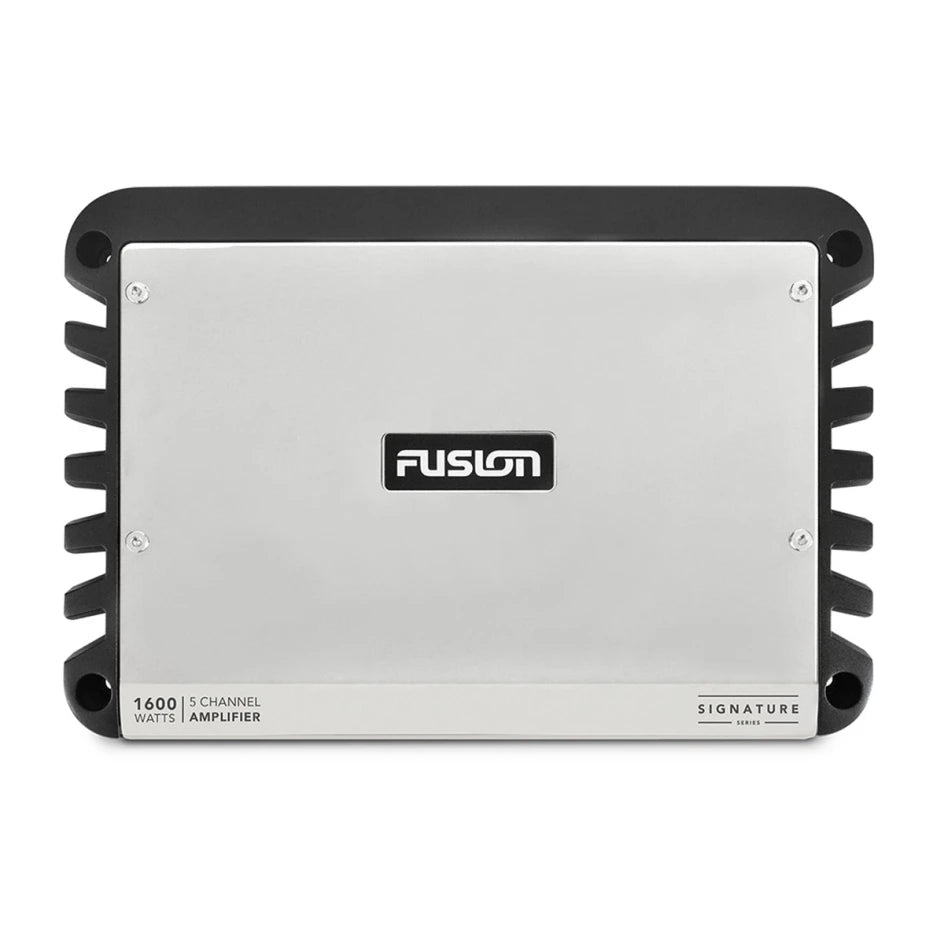

Fusion Signature Series 5 Channel 1600-Watt Marine Amplifier
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
Purpose-built for the marine environment, the Fusion Signature Series amplifier features some of the most impressive environmental protection available, delivering a signature performance out on the water. This 5-channel Class-D amplifier powers four full-range speakers at 80 W RMS each plus a dedicated subwoofer channel at 250 W RMS, making it a complete single-amplifier solution for a Signature Series system.
Efficient Class-D circuitry keeps current draw and heat low while a conformal-coated board and rugged construction resist the salt, humidity and vibration of the marine environment. User-adjustable input sensitivity and variable crossovers let you tune each zone precisely, so full-range speakers and subwoofer blend seamlessly across the boat.
PRODUCT DETAILS
- Five-channel Class-D design, 80 W RMS x 4 plus 250 W RMS x 1 at 4 ohms, 1600 W peak
- Dedicated subwoofer channel to add deep bass without a second amplifier
- User-adjustable input sensitivity for a clean match to any Fusion marine stereo
- Variable high-pass and low-pass crossovers for precise multi-zone tuning
- Marinised, conformal-coated build resists salt, humidity and vibration on board
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Amplifier
| Channels | 5 (4 full-range + 1 subwoofer) |
| Power (RMS) at 4 Ω | 80 W x 4 + 250 W x 1 @ 14.4 V, <1% THD |
| Power (RMS) at 2 Ω | 130 W x 4 + 330 W x 1 @ 14.4 V, <1% THD |
| Power bridged (RMS) at 4 Ω | 250 W x 2 + 250 W x 1 |
| Total power (peak) | 1600 W |
| Class | Class-D |
| Frequency response | 10 Hz - 50 kHz |
| THD | <1% at rated power |
| Input sensitivity | 0.3 V - 8 V RMS, user adjustable |
| Input impedance | 4 kΩ nominal |
Electrical
| Supply voltage | 12 V DC (10.8 V - 16 V) |
| Fuse rating | 2 x 40 A ATC blade type |
Installation
| Dimensions (W x D x H) | 300 x 210 x 50 mm |
General
| Warranty | 2 years |
