Garmin

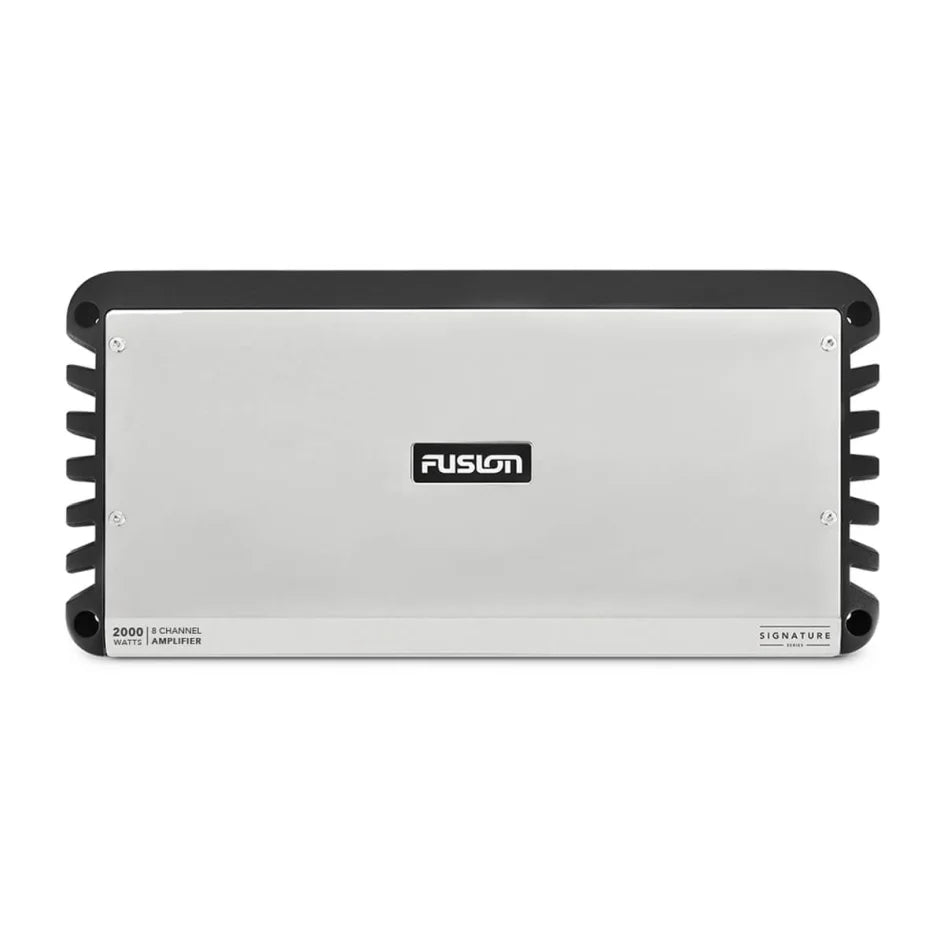

Fusion Signature Series 8 Channel 2000-Watt Marine Amplifier
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
Purpose-built for the marine environment, the Fusion Signature Series amplifier features some of the most impressive environmental protection available, delivering a signature performance out on the water. This 8-channel Class-D amplifier drives up to eight speakers with 100 W RMS per channel at 4 ohms, and can be bridged to four channels, making it the ideal heart of a large multi-zone Signature Series installation.
Efficient Class-D circuitry keeps current draw and heat low while a conformal-coated board and rugged construction resist the salt, humidity and vibration of the marine environment. User-adjustable input sensitivity and variable crossovers let you tune every zone precisely, so audio stays balanced from bow to stern.
PRODUCT DETAILS
- Eight-channel Class-D design delivering 100 W RMS per channel at 4 ohms, 2000 W peak
- Bridgeable to four 280 W RMS channels for extra power or larger speakers
- Ideal for large multi-zone systems, powering the whole boat from one amplifier
- User-adjustable input sensitivity for a clean match to any Fusion marine stereo
- Marinised, conformal-coated build resists salt, humidity and vibration on board
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Amplifier
| Channels | 8 |
| Power per channel (RMS) at 4 Ω | 100 W x 8 @ 14.4 V, <1% THD |
| Power per channel (RMS) at 2 Ω | 140 W x 8 @ 14.4 V, <1% THD |
| Power bridged (RMS) at 4 Ω | 280 W x 4 |
| Total power (peak) | 2000 W |
| Class | Class-D |
| Frequency response | 10 Hz - 40 kHz |
| THD | <1% at rated power |
| Crossover | High-pass and low-pass 32 Hz - 320 Hz |
| Input sensitivity | 0.3 V - 8 V RMS, user adjustable |
| Input impedance | 7 kΩ nominal |
Electrical
| Supply voltage | 12 V DC (10.8 V - 16 V) |
| Fuse rating | 4 x 40 A ATC blade type |
Installation
| Dimensions (W x D x H) | 420 x 210 x 57 mm |
General
| Warranty | 2 years |
