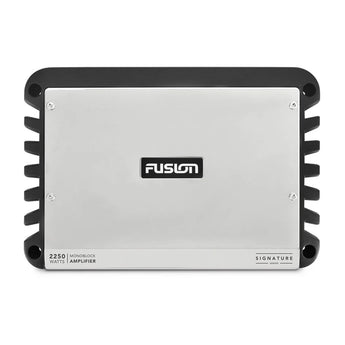

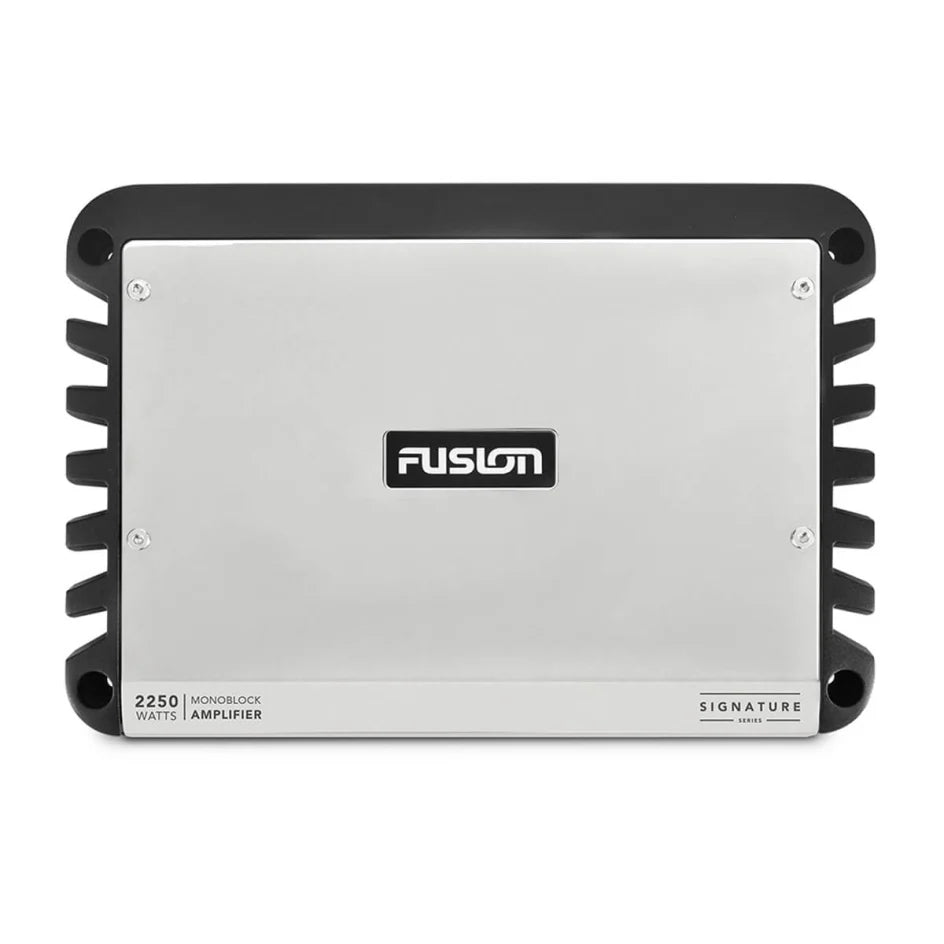

Fusion Signature Series Monoblock 2250-Watt Marine Amplifier
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
Purpose-built for the marine environment, the Fusion Signature Series monoblock amplifier features some of the most impressive environmental protection available, delivering a signature performance out on the water. This single-channel Class-D amplifier is dedicated to bass, producing 500 W RMS at 4 ohms and up to 1100 W RMS at 1 ohm to drive one or more marine subwoofers with authority.
Efficient Class-D circuitry keeps current draw and heat low while a conformal-coated board and rugged construction resist the salt, humidity and vibration of the marine environment. A subwoofer-optimised low-pass crossover plus adjustable bass boost let you dial in exactly the low-end weight your boat needs.
PRODUCT DETAILS
- Class-D monoblock delivering 500 W RMS at 4 ohms, up to 1100 W RMS at 1 ohm, 2250 W peak
- Dedicated subwoofer amplifier for deep, controlled marine bass
- Subwoofer-optimised low-pass crossover for clean integration with your speakers
- Adjustable bass boost (0 dB to 9 dB) to tune low-end weight to your boat
- Marinised, conformal-coated build resists salt, humidity and vibration on board
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Amplifier
| Channels | 1 (monoblock) |
| Power (RMS) at 4 Ω | 500 W x 1 @ 14.4 V, <1% THD |
| Power (RMS) at 2 Ω | 850 W x 1 @ 14.4 V, <1% THD |
| Power (RMS) at 1 Ω | 1100 W x 1 @ 14.4 V, <1% THD |
| Total power (peak) | 2250 W |
| Class | Class-D |
| Frequency response | 10 Hz - 320 Hz (-3 dB @ 4 Ω, subwoofer) |
| THD | <1% at rated power |
| Crossover | Low-pass 32 Hz - 320 Hz; High-pass 10 Hz - 80 Hz |
| Bass boost | 0 dB - 9 dB, user adjustable |
| Input sensitivity | 0.3 V - 8 V RMS, user adjustable |
| Input impedance | 4 kΩ nominal |
Electrical
| Supply voltage | 12 V DC (10.8 V - 16 V) |
| Fuse rating | 3 x 40 A ATC blade type |
Installation
| Dimensions (W x D x H) | 300 x 210 x 50 mm |
General
| Warranty | 2 years |
