B&G
B&G, Lowrance, Simrad NAIS-500 AIS System with Splitter and N2k kit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The NAIS 500 Class B AIS System comes with GPS aerial .Reduce your risk of collision with this fully integrated, Class-B AIS transponder - essential for navigating today's busy shipping lanes and congested ports. Compact in size, lightweight, fully waterproof, with low power draw and featuring multiple connections, the NAIS 500 is ideal for networking with compatable B&G, Simrad and Lowrance MFD's Pack contains NSPL-500 AIS-VHF Splitter.
PRODUCT DETAILS

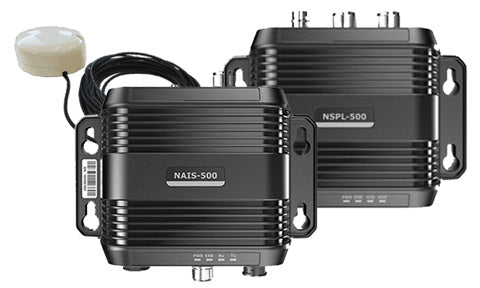

- Complete Class B AIS package: NAIS-500 transceiver, GPS antenna, NSPL-500 splitter and NMEA 2000 kit
- Transmit and receive AIS - send your position and see other vessels
- NSPL-500 splitter lets AIS share a single VHF antenna with your VHF radio
- Includes NMEA 2000 starter kit for fast plug-and-play networking
- Networks with B&G, Simrad and Lowrance multifunction displays
- Multiple connections: NMEA 2000, NMEA 0183, NMEA 0183 multiplexing and USB
- Compact, lightweight and fully waterproof
- Low power consumption with a wide 9.6 to 31.2 V DC voltage range
- NAIS-500 Class B AIS transceiver
- External GPS antenna
- NSPL-500 AIS/VHF antenna splitter with connection cables
- NMEA 2000 starter kit
- Power and data cable
- USB configuration cable and NAIS System Configurator software
- Fixing screws and documentation pack
- VHF antenna required but not supplied
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Kit Contents | NAIS-500 Class B AIS transceiver, external GPS antenna, NSPL-500 AIS/VHF antenna splitter and NMEA 2000 starter kit |
| AIS Class | Class B (CSTDMA) |
| Warranty | 2 Years |
Performance
| VHF Transceiver | AIS transmitter x 1; AIS receiver x 2 (one receiver time shared between AIS and DSC) |
| Frequency Range | 156.025 to 162.025 MHz in 25 kHz steps |
| GPS Receiver | 50 channel, IEC 61108-1 compliant (internal to AIS) |
| Splitter Insertion Loss | 0 dB receive; typical 1 dB transmit (NSPL-500) |
Connectivity
| Data Interfaces | USB; NMEA 0183 38,400 baud; NMEA 0183 4,800 baud; NMEA 2000 LEN=1 |
Electrical
| Supply Voltage | 9.6 V to 31.2 V DC (12 V or 24 V systems) |
Physical
| Transceiver Dimensions | 152 x 98 x 52 mm (L x W x H) |
| Splitter Dimensions | 152 x 98 x 52 mm (L x W x H) |
Environment
| Waterproof Rating | IPx7 transceiver; IP67 splitter |
| Operating Temperature | -15 C to +55 C |
