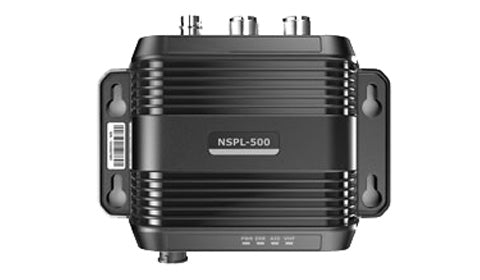

B&G, Lowrance, Simrad NSPL-500 AIS-VHF Splitter
£280.00
/
Tax included.
Shipping calculated at checkout.
000-13612-001
The B&G NSPL-500 is an AIS and VHF antenna splitter that lets your NAIS-500 Class B AIS transceiver share a single VHF antenna with your VHF radio, removing the need for a second antenna. It is fully automatic with zero insertion loss on receive and only minimal loss on transmit, plus an optional FM radio output. Compact, fully waterproof to IP67 and DSC compatible.
✓
Available for collection or delivery in ~1 day
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Navico Extended Warranty
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
Save the hassle of installing a costly second antenna and use your existing single antenna with VHF/AIS/FM, by enlisting the lightweight, compact NSPL 500 antenna splitter. When combined with the NAIS 500 AIS system, you can see and be seen on the water, whether tackling busy shipping lanes or crowded ports.
PRODUCT DETAILS
- Easy to use, plug and play functionality
- Lightweight and compact unit
- Fully waterproof
- Low power consumption
- Wide voltage range
- No insertion loss on AIS and VHF receive
- Low insertion loss on AIS and VHF transmit
- NSPL-500 AIS/VHF antenna splitter
- VHF radio connection cable (red heat-shrink sleeves)
- AIS transceiver connection cable (green heat-shrink sleeves)
- Power and FM radio cable
- Four fixing screws
- Product manual and warranty information
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Type | AIS / VHF antenna splitter (DSC compatible) |
| Warranty | 2 Years |
Performance
| VHF and AIS Frequency Range | 156 MHz to 162 MHz |
| Insertion Loss, AIS & VHF Receive Paths | 0 dB |
| Insertion Loss, AIS & VHF Transmit Paths | Typical 1 dB |
| Max Input Power, AIS Port | 12.5 W |
| Max Input Power, VHF Port | 25 W |
| Min Input Power, VHF Port | 0.5 W |
Connectivity
| Port Impedance (AIS, VHF, Antenna) | 50 Ohms |
| FM Port Impedance | 75 Ohms |
Electrical
| Supply Voltage | 9.6 V to 31.2 V DC (12 V or 24 V systems) |
| Current Consumption | Less than 150 mA at 12 VDC |
Physical
| Dimensions | 152 x 98 x 52 mm (L x W x H) |
| Weight | 260 g |
Environment
| Ingress Protection | IP67 |
| Operating Temperature | -15 C to +55 C |
Approvals
| Compass Safe Distance | 0.3 m |
No videos available for this product.
What does the NSPL-500 do?
The NSPL-500 lets a single VHF antenna be shared between your AIS Class B transceiver and your VHF voice radio, so you do not need to fit a second antenna. It also has an optional FM radio antenna output. Operation is fully automatic with no user controls.
Is it compatible with the NAIS-500?
Yes. The NSPL-500 is designed specifically to work with the NAIS-500 Class B AIS transceiver and is supplied with the correct connection cables. It also works with AIS receivers. It must not be used with Class A transceivers, Aids to Navigation transceivers or AIS base stations.
Does the splitter reduce my AIS or VHF range?
There is no insertion loss on the AIS and VHF receive paths and only a typical 1 dB loss on transmit, so any reduction in transmission range is very small and normal. When the VHF radio transmits, AIS position reports pause momentarily, as both devices cannot transmit at the same time through one antenna.
What is in the box?
The NSPL-500 splitter, a VHF radio connection cable (red sleeves), an AIS transceiver connection cable (green sleeves), a power and FM radio cable, four fixing screws, the product manual and warranty information.
Where should it be installed?
The NSPL-500 must be fitted below decks, at least 0.3 m from a compass or magnetic device, and away from flammable areas. It is fully waterproof to IP67 but should not be subjected to prolonged spray or submersion.
