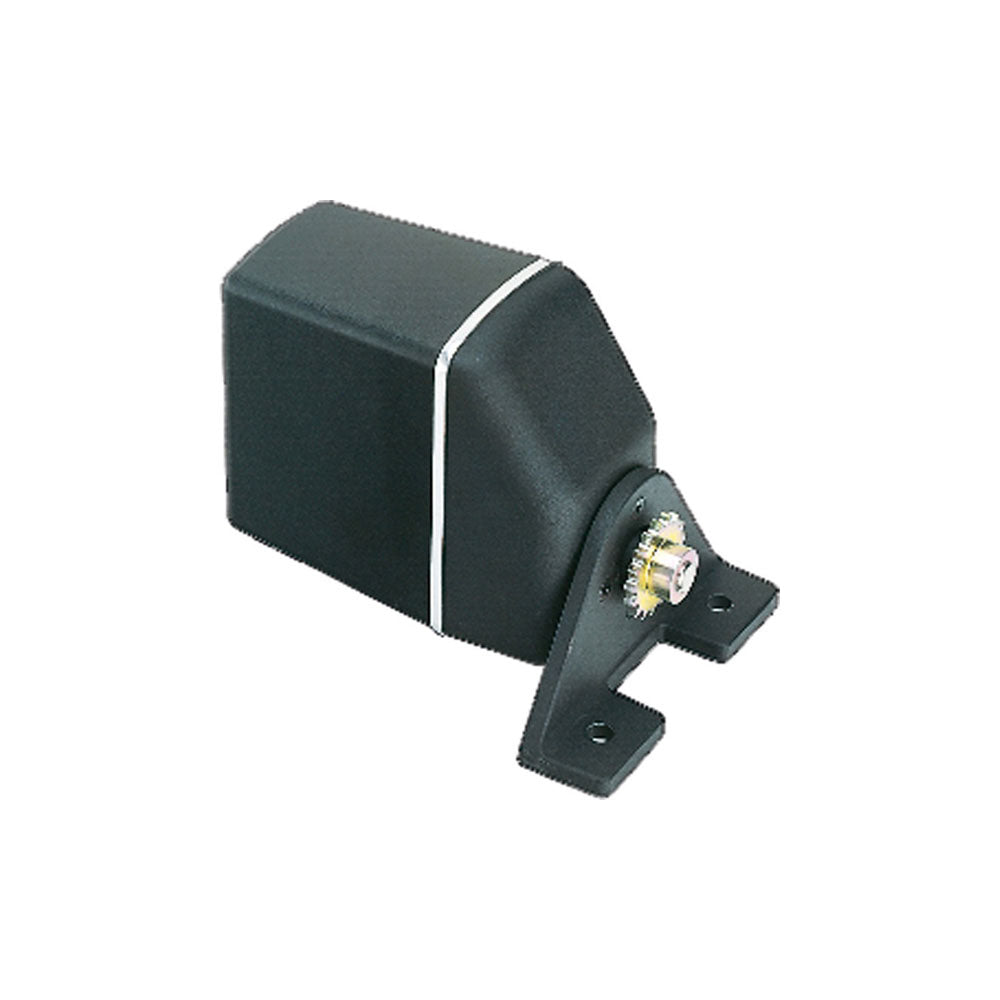

Raymarine Type 2 24 Volt Autopilot Rotary Drive (up to 20,000kg)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine Type 2 rotary drive is an electrically driven autopilot drive for power and sailboat steering systems that can be driven from the helm position through a chain and sprocket, typically cable and rod-steering systems. The rotary drive's sprocket engages the boat's steering chain to keep the boat on course, and an electro-mechanical clutch disengages it for easy hand-steering when in standby.
The design provides smooth, powerful autopilot steering with quiet operation. This Type 2 model suits vessels up to 20,000kg (44,000 lbs) displacement on 24-volt DC power. Optional drive sprockets and modifications to the boat's steering chain may be required, so Raymarine recommends consulting an authorised dealer when planning a rotary drive installation.
The rotary drive forms the muscle of an Evolution autopilot and requires the ACU-400 actuator control unit.
PRODUCT DETAILS
- Electric rotary autopilot drive for chain and sprocket (cable/rod) steering
- Suitable for vessels up to 20,000kg (44,000 lbs) displacement
- Sprocket engages the boat's steering chain to keep it on course
- Electro-mechanical clutch disengages for easy hand-steering in standby
- Smooth, powerful autopilot steering with quiet operation
- For 24-volt DC electrical systems
- Works with the Evolution ACU-400 actuator control unit
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Drive
| Drive type | Mechanical rotary drive (chain and sprocket) |
| Drive classification | Type 2 |
| Steering type | Chain and sprocket / cable / rod steering |
| Clutch | Electro-mechanical clutch (disengages for hand-steering) |
General
| Maximum vessel displacement | 20,000 kg (44,000 lb) |
Power
| Supply voltage | 24 V dc |
| Drive clutch | 12 V (electromagnetic clutch) |
| Fuse rating | 30 A |
| Thermal circuit breaker | 30 A |
Compatibility
| Actuator Control Unit | ACU-400 |
| Autopilot system | Evolution |
