Garmin

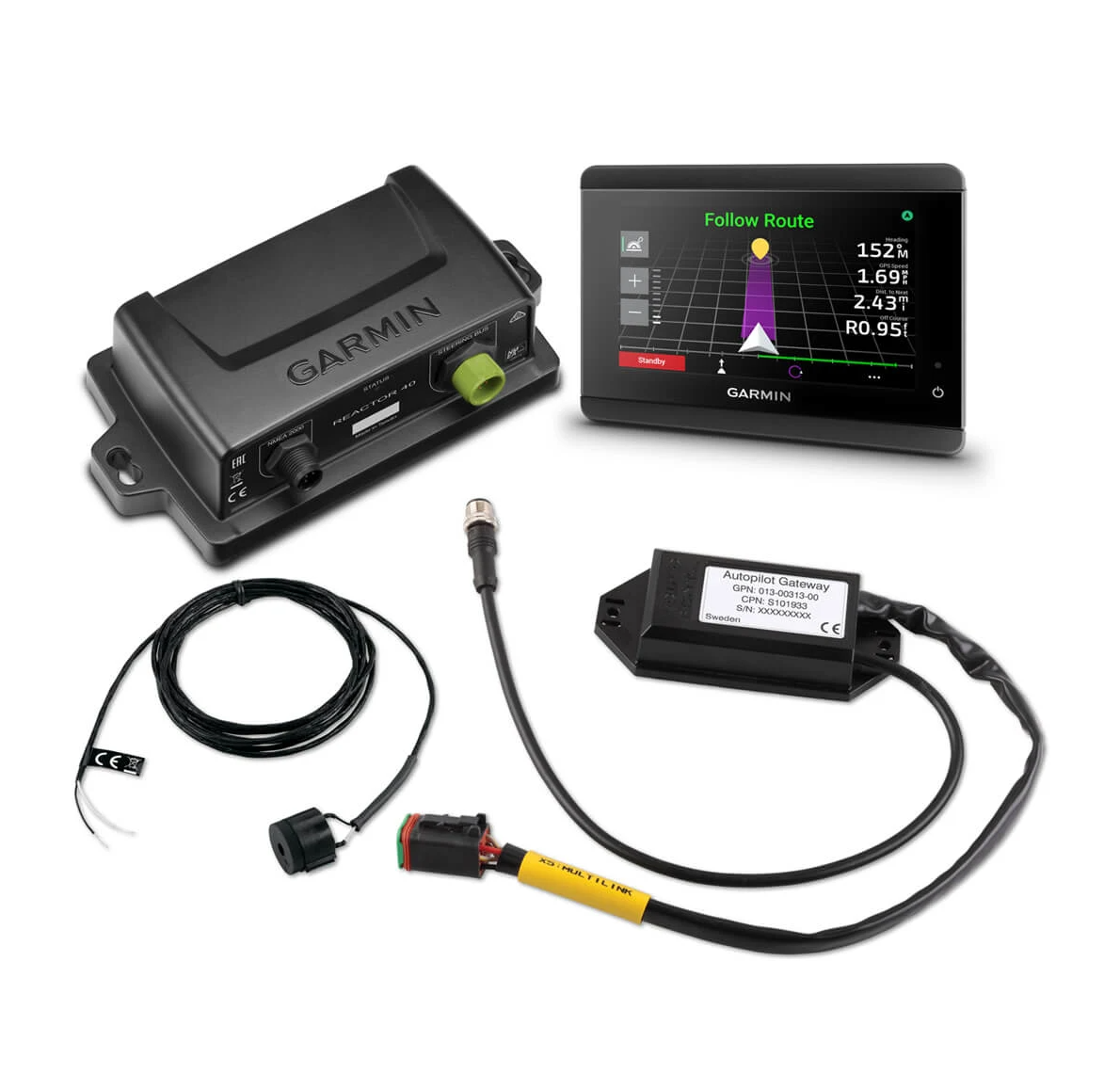

Reactor™ 40 Steer-by-wire Corepack for Volvo-Penta® With GHC™ 50 Autopilot Instrument
£4,729.99
/
Tax included.
Shipping calculated at checkout.
010-02794-06
Reactor 40 Steer-by-Wire autopilot configured for Volvo Penta electronic steering, supplied with the GHC 50 touchscreen instrument. The CCU commands the existing steering through its CAN bus.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin Reactor 40 Steer-by-Wire autopilot with GHC 50 adds GPS-stabilised steering to boats fitted with Volvo Penta electronic steering. Instead of a hydraulic pump or mechanical drive, the Reactor 40 CCU connects to the steering controller through its CAN bus and commands the existing Volvo Penta steering directly, keeping installation simple and clean. The CCU is a solid-state course computer that senses heading, attitude and rate of turn to hold a course or follow a route accurately. Control is through the supplied GHC 50, a 5 in colour touchscreen instrument with NMEA 2000, Wi-Fi and ANT+ connectivity. NMEA 2000 connectivity ties the system into compatible Garmin chartplotters for waypoint and route navigation, and Dockside and Sea Trial wizards tune performance to your boat.
PRODUCT DETAILS
- GPS-stabilised Reactor 40 autopilot for Volvo Penta steer-by-wire boats
- Commands the existing Volvo Penta electronic steering, with no pump or drive to fit
- GHC 50 instrument with a 5 in colour touchscreen supplied for helm control
- Solid-state CCU heading sensor with built-in attitude and rate-of-turn
- Simple installation: CCU connects to the steering CAN bus and NMEA 2000
- NMEA 2000, Wi-Fi and ANT+ connectivity with wireless remote support
- Reactor 40 CCU (course computer unit)
- Steering controller / CAN bus interface for Volvo Penta
- GHC 50 autopilot instrument
- Audible alarm
- NMEA 2000 T-connectors, drop cables, power cable and terminators
- Mounting hardware and installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Autopilot
| Autopilot type | GPS-stabilised marine autopilot (Reactor 40 CCU course computer) |
| Drive type | Steer-by-wire; the CCU commands the boat existing electronic steering system, no pump or drive unit required |
| Helm control | GHC 50 autopilot instrument (included) |
Sensor
| Heading sensor (CCU) | Internal solid-state attitude and rate-of-turn sensor; primary heading source |
| CCU dimensions (L x W x H) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| CCU weight | 200 g (7 oz.) |
| CCU water rating | IEC 60529 IPX7 |
| CCU cable length | 3 m (9 ft.) |
| Compass-safe mounting | Requires handheld-compass interference test; keep 60 cm (2 ft) from iron, magnets and high-current wiring |
Drive
| Steering interface | CCU connects to the steering controller CAN bus via the supplied steering controller; requires a powered, terminated CAN bus |
| Components not required | No ECU, hydraulic pump or Shadow Drive sensor; steering is handled by the boat electronic steering |
| Steering platform | Configured for Volvo Penta electronic steering |
Controller
| Display | GHC 50: 5 in (12.7 cm) sunlight-readable colour touchscreen, 800 x 480 WVGA |
| Connectivity | NMEA 2000, Wi-Fi and ANT+ (wireless remote support) |
Connectivity
| Network | NMEA 2000 |
| NMEA 2000 LEN | 4 (200 mA) |
| NMEA 2000 input voltage | 9 to 16 Vdc |
Physical
| Included alarm | Audible alarm 23 x 25 mm, 68 g, 3 m cable |
General
| Compatible steering | Compatible electronic (steer-by-wire) steering systems |
| Configuration | Dockside Wizard and Sea Trial Wizard via the GHC 50 or a compatible Garmin chartplotter |
No videos available for this product.
Does this autopilot need a pump or drive unit?
No. Steer-by-wire systems command the boat existing electronic steering directly, so there is no hydraulic pump, ECU or mechanical drive to install. The CCU connects to the steering controller through its CAN bus.
What kind of boat is this for?
It is for boats fitted with compatible electronic (steer-by-wire) steering. The steering controller CAN bus must be powered and properly terminated.
What is the GHC 50?
The GHC 50 is Garmin marine autopilot instrument, with a 5 in sunlight-readable colour touchscreen and NMEA 2000, Wi-Fi and ANT+ connectivity for wired and wireless control.
How long is the CCU cable?
The CCU cable is 3 m (9 ft.) and connects the CCU to the steering system. It must not be cut, but extension cables are available if needed.
