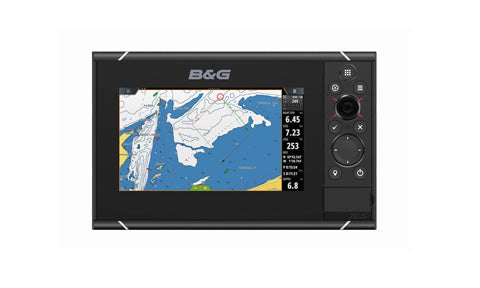

B&G Zeus3 7 MFD,World Basemap
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Zeus³-7 is an easy-to-use chartplotter navigation system for blue water cruisers and regatta racers, incorporating a 7-inch touchscreen display, high-performance electronics, and a wide range of functionality designed specifically for sailors. World basemap chart. Unit features: A super-bright 7" SolarMAX™ HD display with ultra-wide viewing angles. Dedicated sailing features such as SailSteer, Laylines and RacePanel. High-performance processor for responsive operation and quick chart redraw. All-weather touchscreen plus full rotary and keypad controls. Wi-Fi enabled for easy access to charts, weather, updates, support, and screen mirroring. Built-in ForwardScan™ sonar support for safer passage through shallow waters
PRODUCT DETAILS
- A super-bright 7" SolarMAX HD display with ultra-wide viewing angles
- Dedicated sailing features such as SailSteer, Laylines and RacePanel
- High-performance processor for responsive operation and quick chart redraw
- All-weather touchscreen plus full rotary and keypad controls
- Wi-Fi enabled for easy access to charts, weather, updates, support, and screen mirroring
- Built-in ForwardScan sonar support for safer passage through shallow waters
- Zeus3 7 display unit
- Sun cover
- Bezel trim
- Power cable
- U-bracket with knobs and mounting screws
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Backlight Color | White |
| Display Resolution | 600 x 1024 |
| Display Size | 7 inches |
| Viewing Angles | 80° top/bottom, 80° left/right |
Connectivity
| Bluetooth | Internal |
| Ethernet Ports | 1 x 5 pin yellow connector x 10/100 Mbit |
| Wi-Fi | Internal |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| SD Card Storage | 2 Micro SD slots, max. 32GB each. Larger if formatted to NTFS |
| Video | 2 x composite (RCA) video inputs. Optional video/data cable required (P/N 000-00129-001) |
Electrical
| Power Consumption max | 20 W |
| Recommended Fuse Rating | 3A |
| Supply Voltage | 10 - 31.2 V DC |
Environment
| Operating Temperature Range | -15°C to +55°C (5°F to 131°F) |
| Storage Temperature Range | -20°C to +60°C (-4°F to 140°F) |
| Waterproof rating | IPX6 and 7 |
GPS
| Correction | WAAS, MSAS, EGNOS, GLONASS |
| GPS Receiver Channels | 34 Channels |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| Update rate | 10 Hz |
MFD
| AIS | Receive AIS data over NMEA 2000 or NMEA 0183 |
| Autopilot | Full autopilot control and commissioning |
| Cartography included | C-MAP |
| GPS | Internal |
| Internal Storage | 16 GB |
| Sonar Compatibility | Two 9-pin Xsonic Sonar ports. Port 1: Single channel CHIRP, 50/200 kHz, HDI. Port 2: Single channel CHIRP, 50/200 kHz, Active Imaging, TotalScan, LSS HD, ForwardScan |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points |
| Weather | SiriusXM via WM-4 / WM-3 (USA only), GRIB |
Physical
| Dimensions W x H x D | 239 x 150 x 90 mm (9.4 x 5.9 x 3.5") |
| Mounting Type | Bracket (Supplied) or panel mount |
| Weight | 1.1 kg (2.42 lbs.) |
Other
| Interface | Full touch screen (multi-touch) and full keypad control, ZC2 remote controllers |
| Warranty Period | 2 Years |
