Victron
Victron Busbar 250A 6-Pole (with Cover)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

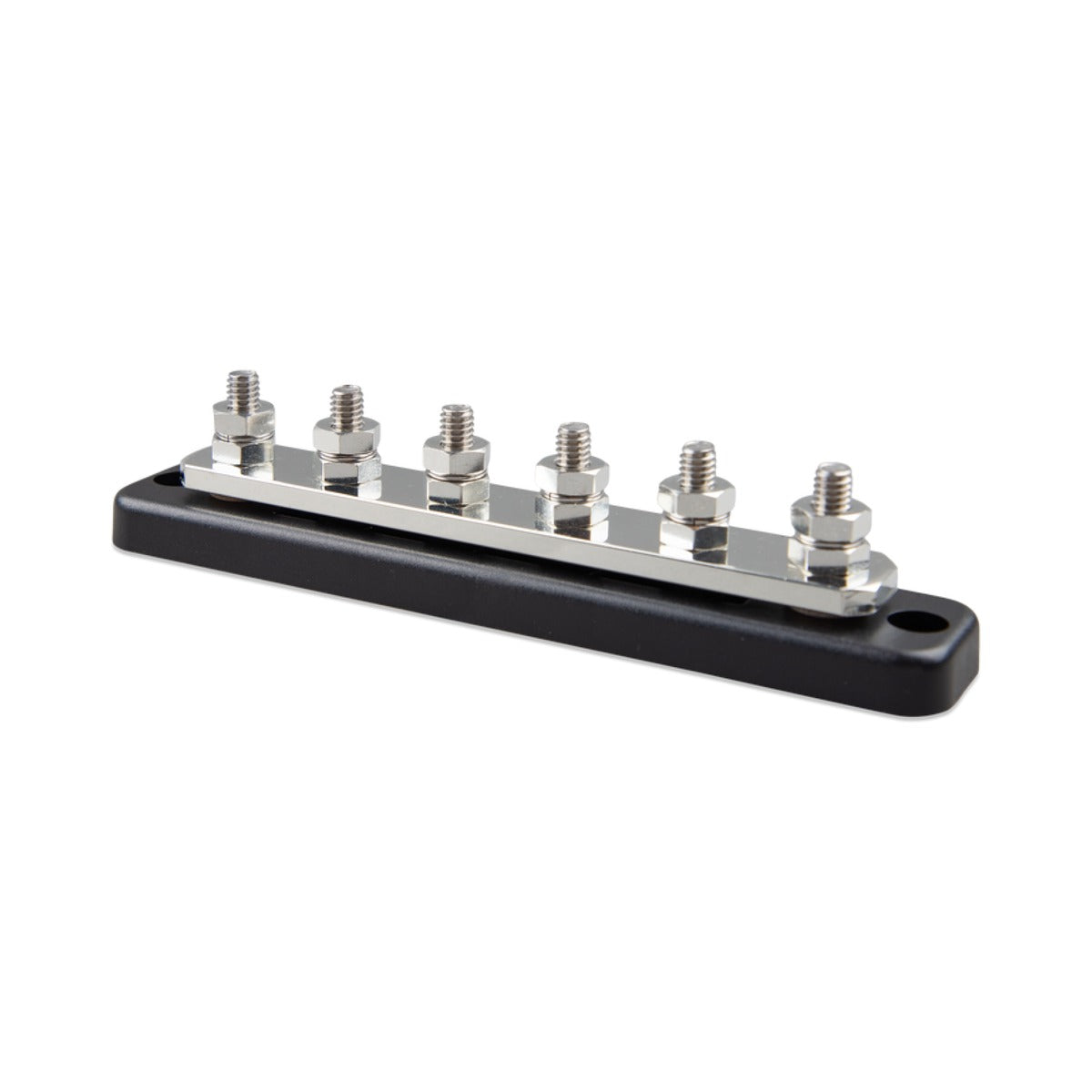

This Victron busbar provides a single common point for connecting several DC loads or sources to the battery. Rated for a continuous 250 A at up to 70 VDC, it carries six heavy current stud terminals, bringing a larger positive or negative bank of cables together at one low resistance connection.
The busbar strip is tin-plated copper, mounted on a black ABS base rated UL 94 V-0, with a protective cover supplied to guard against accidental short circuits.
PRODUCT DETAILS
- Common DC distribution point for connecting multiple loads and sources
- Continuous current rating of 250 A at up to 70 VDC
- Six 5/16 inch (8 mm) stainless steel stud terminals
- Low resistance tin-plated copper busbar strip
- Black ABS base rated UL 94 V-0
- Protective cover included
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous current | 250 A |
| Number of connections | 6 |
| Number of poles | 6-pole |
Electrical
| Continuous current rating | 250 A at 70 VDC |
Physical
| Stud size | 5/16 inch (8 mm), stainless steel, torque 13 Nm |
| Cover included | Yes, black ABS |
| Material | Tin-plated copper strip, ABS base |
