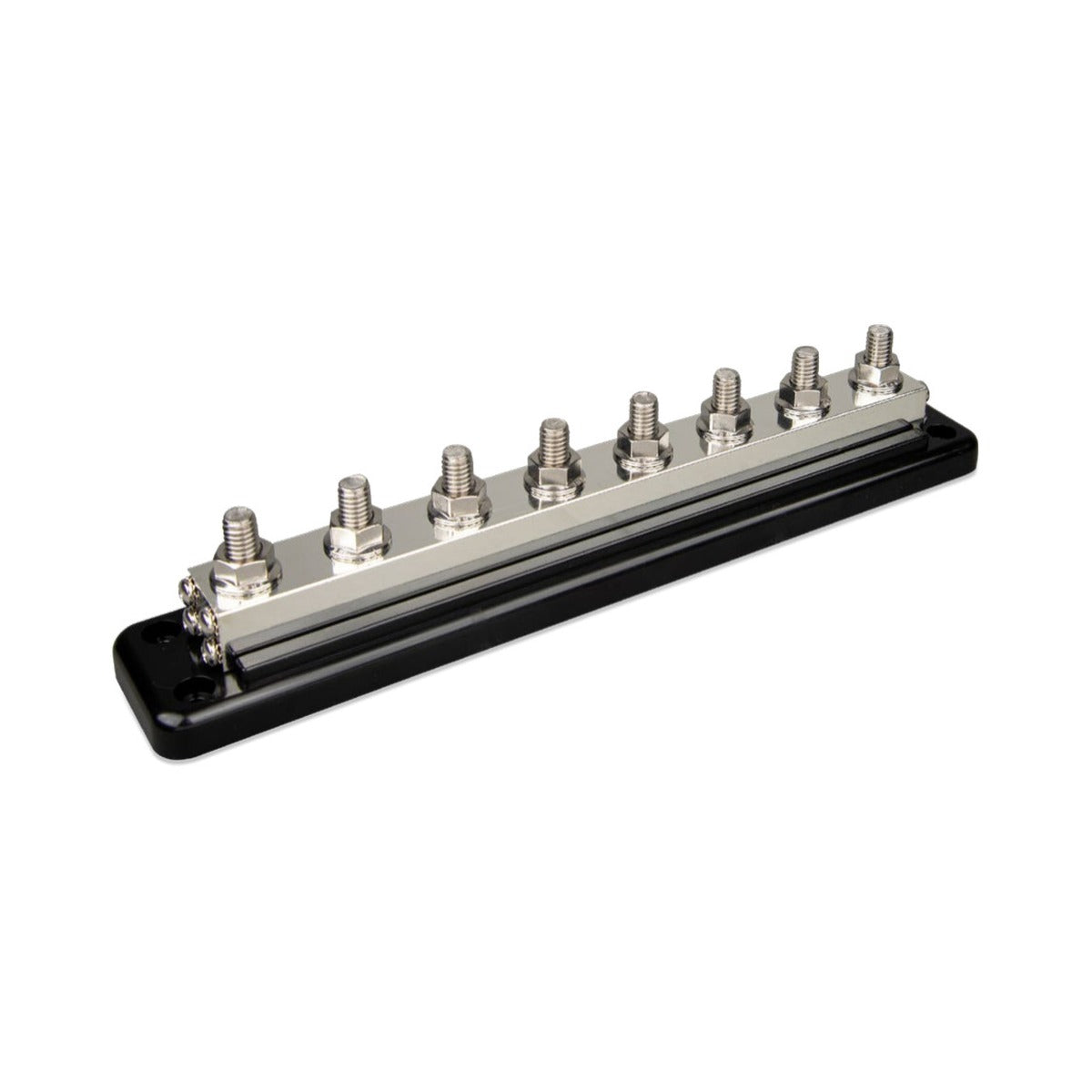

Victron Busbar 600A 8-Pole (with Cover)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This Victron busbar provides a single common point for connecting several DC loads or sources to the battery. Rated for a continuous 600 A at up to 70 VDC, it carries eight high current stud terminals together with eight smaller screw terminals, letting a large bank of heavy cables and lighter accessory circuits share one low resistance connection.
The busbar itself is tin-plated copper (19 x 24 mm), mounted on a black ABS base rated UL 94 V-0, with a black ABS protective cover supplied to guard against accidental short circuits.
PRODUCT DETAILS
- Common DC distribution point for connecting multiple loads and sources
- Continuous current rating of 600 A at up to 70 VDC
- Eight 3/8 inch (9.53 mm) stainless steel high current studs
- Eight additional low current screw terminals for lighter circuits
- Low resistance tin-plated copper busbar (19 x 24 mm)
- Protective cover included
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous current | 600 A |
| Number of connections | 8 studs plus 8 screws |
| Number of poles | 8-pole |
Electrical
| Continuous current rating | 600 A at 70 VDC |
Physical
| Stud size | 3/8 inch (9.53 mm), stainless steel, torque 20 Nm |
| Cover included | Yes, black ABS |
| Dimensions | 65 x 327 x 86 mm (H x W x D, with cover) |
| Material | Tin-plated copper, ABS base |
