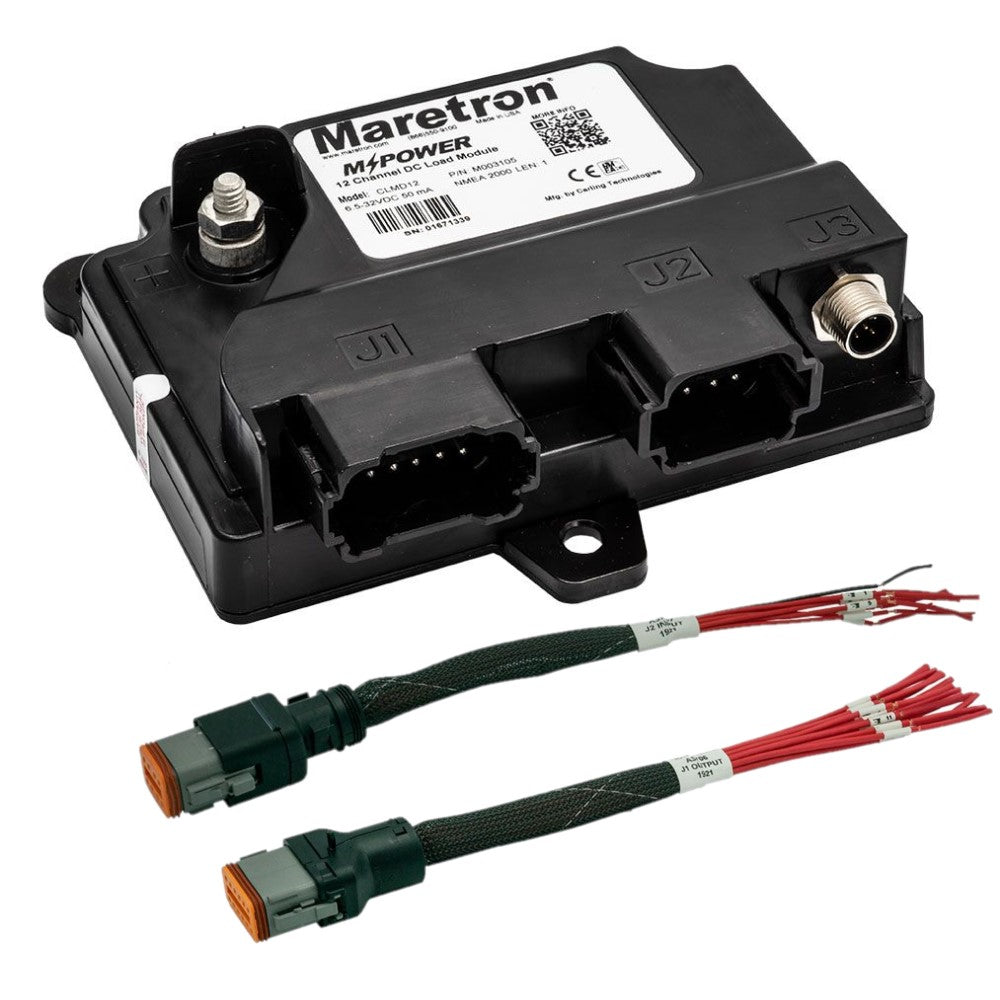

Maretron MPower CLMD12 Power Module with CLMD12, A3706 & A3707
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
Designed for vessels of all sizes with smaller loads, the Maretron MPower CLMD12 is a compact 12-channel DC load controller module that replaces conventional breakers and switches with intelligent digital switching. Two of its twelve electronic circuit breakers handle up to 12 amps, six handle up to 10 amps and four handle up to 5 amps, giving a total capacity of 75 amps, and like circuits can be paralleled for larger loads.
Each breaker is dimmable via PWM and can be given a defined power-up state or locked against inadvertent actuation, while programmable trip levels let you protect smaller circuits using Maretron N2KAnalyzer software. Seven discrete inputs accept hard-wired switches or other data such as bilge alarms and hatch positions. The CLMD12 also reports the current through every breaker, so you can detect overcurrent faults and undercurrent conditions such as failed lamps.
Opto-isolated from the NMEA 2000 network and rated to IP67, the CLMD12 handles lights, pumps, motors and electronics, and is controlled from third-party MFDs, the Maretron MBB300C black box, TSM Series touchscreens, MPower keypads or N2KView V3 software. For manual override, an MPower CBMD12 bypass module can be installed alongside it.
PRODUCT DETAILS
- 12-channel DC load controller for NMEA 2000 digital switching
- Total current capacity 75 amps (2x12A, 6x10A, 4x5A)
- Dimmable PWM electronic circuit breakers
- Per-channel current monitoring and programmable trip levels
- Seven discrete inputs for switches or sensors
- Opto-isolated from NMEA 2000, IP67 rated and ignition protected
- Optional CBMD12 bypass module for manual override
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Specifications
| Number of Channels | 12 |
| Maximum Unit Current Capacity | 75 amps |
| Maximum Channel Current Ratings | 4x5A, 6x10A, 2x12A |
| Switching Voltage | <32 VDC |
| Discrete Inputs | 7 (configurable active high/active low) |
| PWM Frequency | 200 Hz |
| Channel Current Measurement Accuracy | +/-0.5 amps typical |
Electrical
| Voltage Input Range | 6.5 to 32 VDC |
| Power Consumption | 150mA @ 12 VDC / 70mA @ 24 VDC |
| Load Equivalence Number (LEN) | 3 |
| Reverse Battery Protection | Yes (indefinitely) |
| Load Dump Protection | Yes |
Mechanical
| Size | 144.8mm x 127mm x 40.6mm (5.7" x 5.0" x 1.6") |
| Weight | 599 g (1.32 lb) |
| Output Connector | Deutsch DT06-12SA (J1) |
| Input Connector | Deutsch DT06-08SA-E003 (J2) |
Environmental
| Degree of Protection | IP67 |
| Operating Temperature | -40C to 55C |
| Storage Temperature | -55C to 85C |
Certifications
| Standards | NMEA 2000 Certified, CE Mark (RCD 2014/35/EU) |
