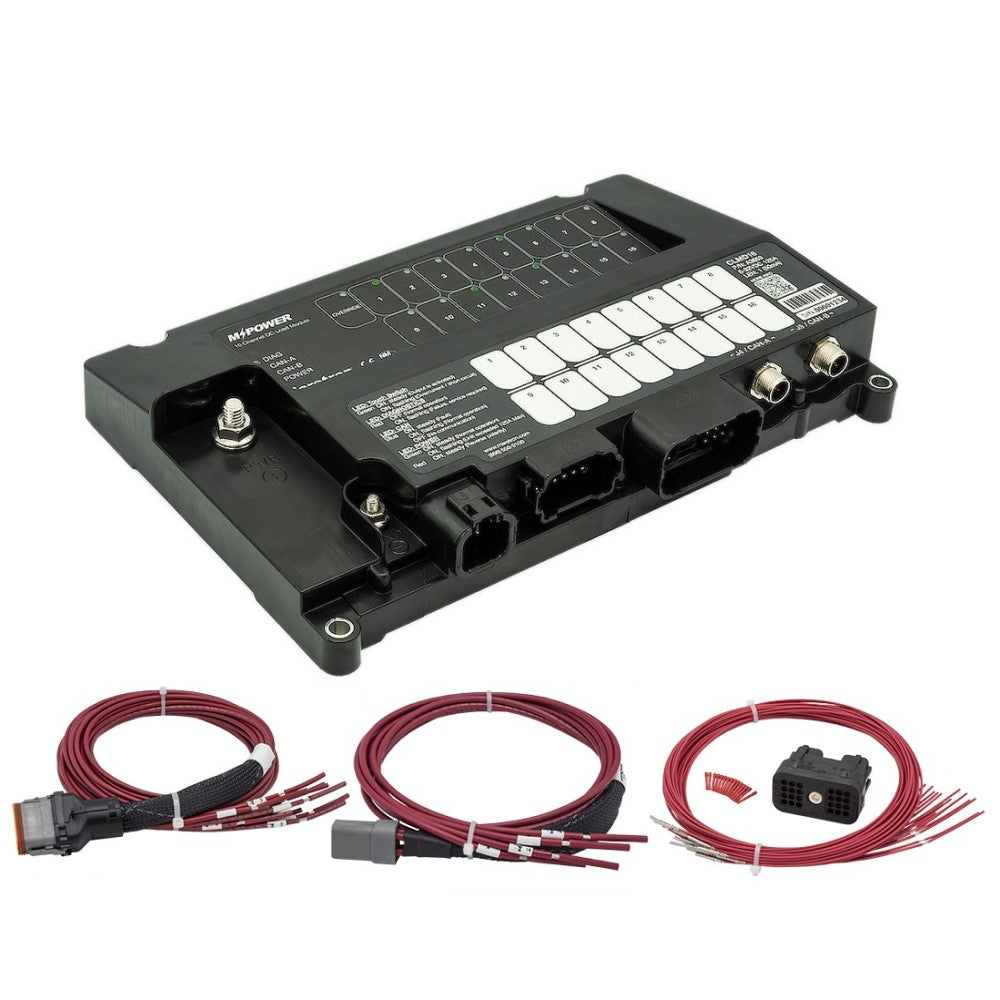

Maretron MPower CLMD16 Power Module with A3708, A3709 & A3710

For larger loads and more circuits, the Maretron MPower CLMD16 is a 16-channel DC load controller module that brings intelligent digital switching to bigger installations. Four of its sixteen electronic circuit breakers handle up to 25 amps and twelve handle up to 12 amps, giving a total current capacity of 125 amps, and select breakers can be paralleled for even larger loads.

The CLMD16 uniquely supports two 12 amp H-bridge reversing polarity circuits for loads such as engine hatches, passerelles and trim tabs. Eight inputs accept hard-wired switches or data such as bilge alarms and hatch positions, and there are two resistive inputs plus one current loop input for uses including tank level monitoring. Twelve of the breakers are dimmable, each can be locked or given a defined power-up state, and every channel reports its current so overcurrent faults and undercurrent conditions can be detected.

Opto-isolated from the NMEA 2000 network, rated to IP67 and ignition protected, the CLMD16 handles lights, pumps, motors and electronics and is controlled from third-party MFDs, the Maretron MBB300C black box, TSM Series touchscreens, MPower keypads or N2KView V3 software.
