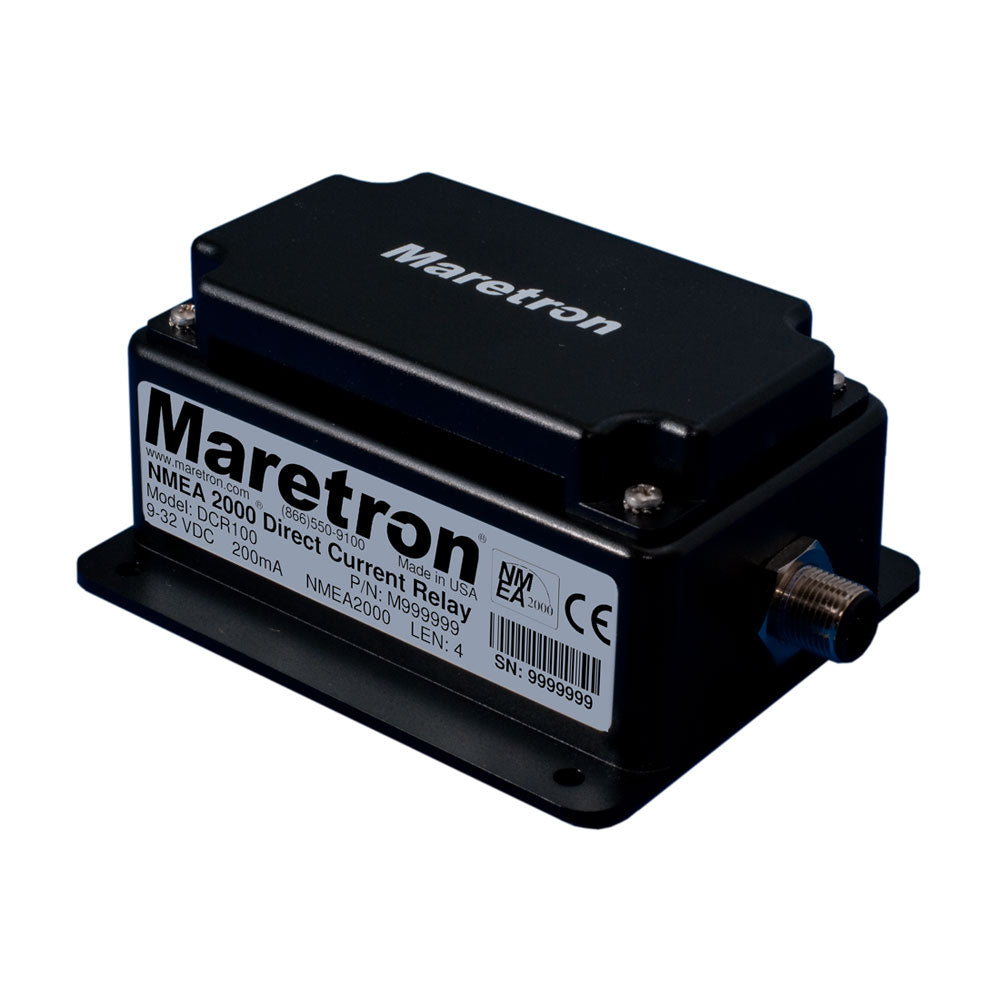

Maretron Direct Current Relay Module
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Maretron DCR100 Direct Current Relay Module brings remote switching to your NMEA 2000 network. It contains six DC relays, each capable of switching up to 10 amps, so you can turn loads on and off from any device onboard or remotely using Maretron N2KView software. It handles resistive DC loads such as lights and inductive DC loads such as pumps and motors, and can also switch AC circuits via external relays.
A key benefit of the DCR100 is that it reports the current flowing through each of its six channels. This lets you detect loads drawing too little current, such as a burnt-out bulb, or too much current, giving early warning of a developing fault. Each channel includes automatic overcurrent shutdown at around 12 amps and thermal shutdown for over-temperature protection.
Channels can be locked into an on or off state, configured with a defined power-up state, and the module can even act as an annunciator to drive a buzzer, horn or strobe in response to an alert. Loads are switched using a Maretron DSM Series display, N2KView or N2KView Mobile.
PRODUCT DETAILS
- Six independent DC relays for on/off control over NMEA 2000
- Each relay switches up to 10 amps
- Individual current monitoring on every channel
- Automatic overcurrent shutdown (approx. 12 A) and thermal protection
- Channels can be locked and given a defined power-up state
- Can act as an annunciator for a buzzer, horn or strobe
- Switchable via Maretron DSM Series, N2KView or N2KView Mobile
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Specifications
| Number of Relays | 6 independent |
| Maximum DC Switching Current | 10 A per channel |
| DC Switching Voltage | <32 VDC |
| Contact Resistance | <10 mOhm |
| Current Sense Accuracy | +/-100 mA |
| Overcurrent Shutdown | Automatic at approx. 12 A |
Electrical
| Operating Voltage | 9 to 32 Volts DC |
| Power Consumption | 150mA |
| Load Equivalence Number (LEN) | 3 |
| Reverse Battery Protection | Yes (indefinitely) |
| Load Dump Protection | Yes |
Mechanical
| Size | 88.9mm x 106.7mm x 51.6mm (3.50" x 4.20" x 2.03") |
| Weight | 368.5 g (13 oz) |
Environmental
| Degree of Protection | IP64 |
| Operating Temperature | -25C to 55C |
| Storage Temperature | -40C to 70C |
NMEA 2000
| Certification Level | Level A |
Certifications
| Standards | IEC 60945, IEC 61162-3, FCC and CE Mark |
