Iris IRIS580 Waterproof Switcher Keypad for IRIS608 / IRIS1608
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

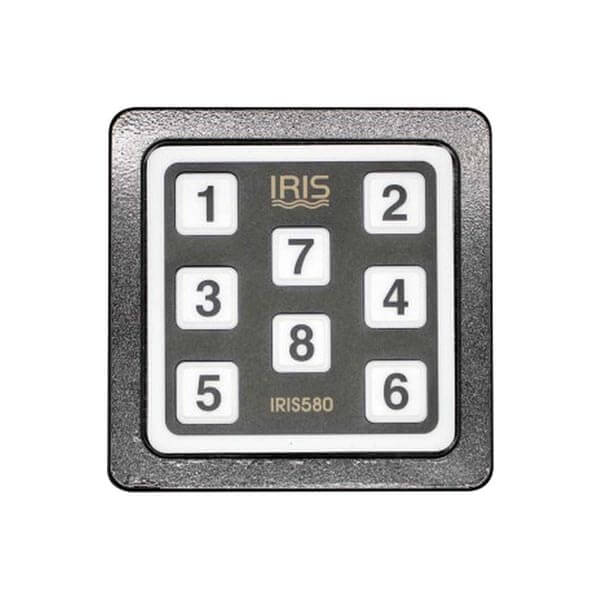

The IRIS580 is a clean, flush-mounting membrane keypad switcher with eight camera input buttons, used to select cameras connected to the IRIS608 and IRIS1608 video switchers. Measuring only 70mm by 70mm and 8mm thick, with a hard black anodised bezel, it is compact and unobtrusive so it does not clutter the helm or dash.
Installation is simple: drill a 20mm clearance hole for the threaded connector and fix in place with the lock-nut. Each button uses a gold-plated reinforced micro-dome contact for reliability and tactile response. The keypad connects to the switcher over shielded CAT5 cable and is supplied with a waterproof field connector for added protection against the elements.
PRODUCT DETAILS
- Selects up to eight cameras on the IRIS608 / IRIS1608 switcher
- Small, unobtrusive flush-mount design (70 x 70 mm, 8mm thick)
- Hard black anodised bezel
- Gold-plated micro-dome contacts for tactile, reliable operation
- IP66 environmental protection
- Connects over shielded CAT5 cable with waterproof field connector
- Simple 20mm hole installation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Controls
| Buttons | 8 x camera select |
Compatibility
| Compatible Switchers | IRIS608, IRIS1608 |
Connectivity
| Cabling | Shielded CAT5 with waterproof field connector |
Environmental
| Ingress Protection | IP66 |
Physical
| Dimensions | 70 x 70 mm, 8mm thick |
