IRIS

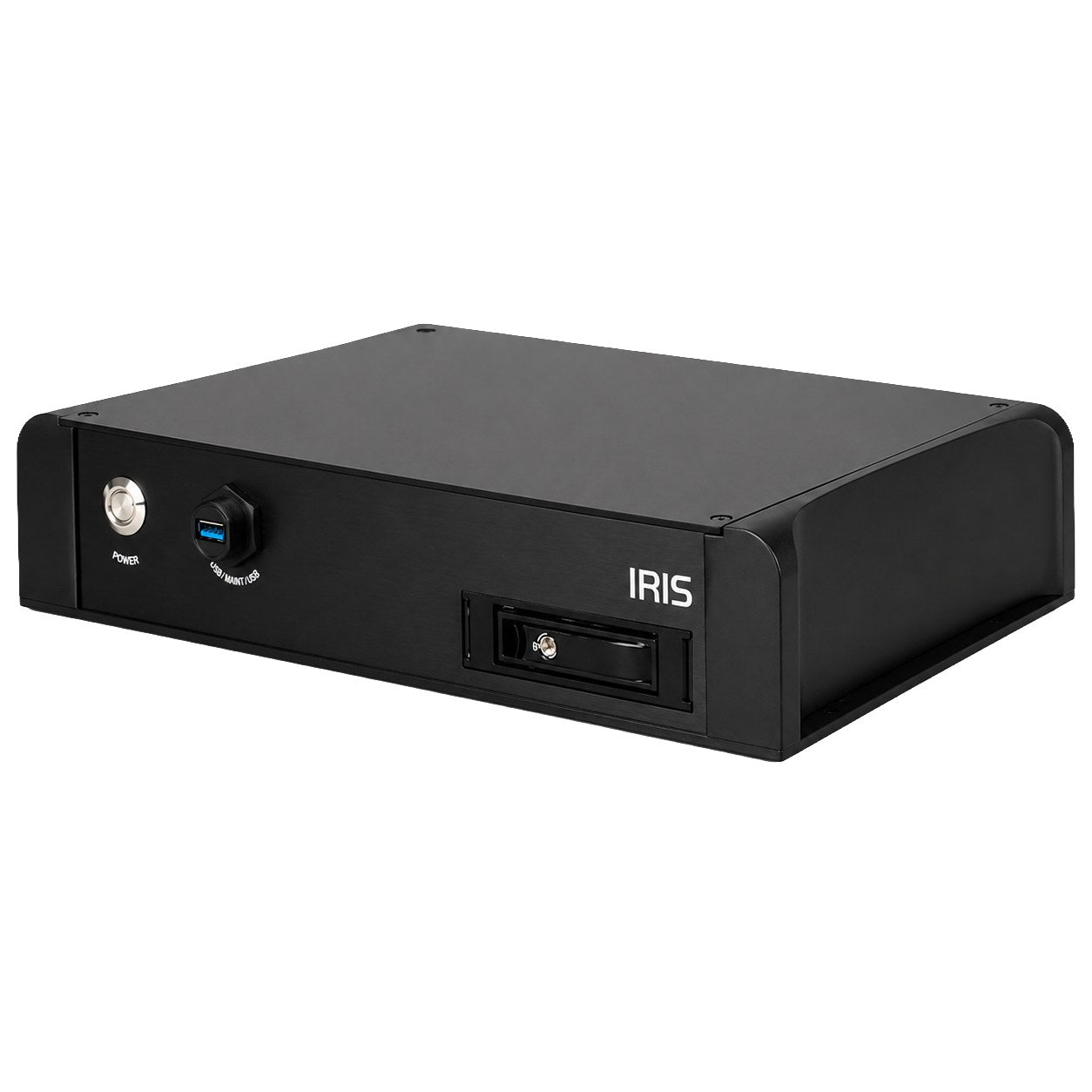

Iris CMAC-HVR 16-Channel Hybrid Recorder, 1TB, Recorder Only
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The CMAC-HVR is a rugged hybrid recording device for a boat's camera system, connecting both network (IP) cameras and analogue formats on a single unit. It accepts legacy composite (CVBS) video alongside AHD, HD-TVI and HD-CVI analogue high-definition cameras, so a mixed or legacy camera set works without replacement and the installation is future-proofed as cameras are upgraded.
This X model is the standalone recorder. It outputs high-definition HDMI video to chart plotters, monitors and televisions and can be viewed and controlled through a web browser or the XMEye app, with built-in WiFi and remote P2P connectivity for access on board or away from the boat. For full chart-plotter integration and the on-screen virtual joystick, choose the IrisControl-hosting G model instead.
The integrated network video recorder is fully configurable for resolution, frame rate and motion-triggered recording, and ships with a 1TB drive in a removable anti-shock caddy that is expandable as storage needs grow.
PRODUCT DETAILS
- 16-channel hybrid recorder: accepts IP, analogue CVBS, AHD, HD-TVI and HD-CVI cameras on one unit
- Standalone network video recorder (no IrisControl chart-plotter app)
- High-definition HDMI video output for plotters, monitors and TVs
- View and control via web browser or XMEye app
- Built-in network video recorder, fully configurable for resolution, frame rate and motion recording
- Supplied with 1TB anti-vibration HDD caddy, expandable storage
- WiFi and remote P2P access to view your cameras on phone, tablet or computer
- Wide 12 to 24VDC input range and rugged, compact case
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Recorder
| Type | Hybrid recorder (NVR + DVR) |
| Channels | 16 channels |
| Camera Inputs | 8 x BNC for CVBS, AHD, HD-TVI, HD-CVI plus IP cameras over RJ45 |
| Network Camera Capacity | Up to 16 IP cameras at 1080p |
| Recording Resolution | Up to 16 x 2MP / 4 x 5MP / 4 x 3MP (IP); 8 x 5MP analogue |
| Video Codec | H.265 |
Storage
| Storage | 1 x 2.5" SATA removable anti-vibration HDD caddy; 1TB supplied |
Compatibility
| Control Interface | Standalone recorder; view/control via web browser or XMEye app (no IrisControl chart-plotter app) |
Video Output
| Output | 1 x HDMI (high definition) |
Connectivity
| Serial Data | RS485 for PTZ control (multi-protocol) |
| Network | RJ45 camera network plus Gigabit RJ45 for hosting IrisControl |
| Remote Access | WiFi and remote P2P; web browser and XMEye app |
| USB Touch | USB touch control interface for compatible MFDs |
Power
| Power | +12VDC to +24VDC, <2A @ 12VDC |
Environmental
| Operating Temperature | -10C to +55C |
Physical
| Dimensions | 430 x 285 x 150 mm |
