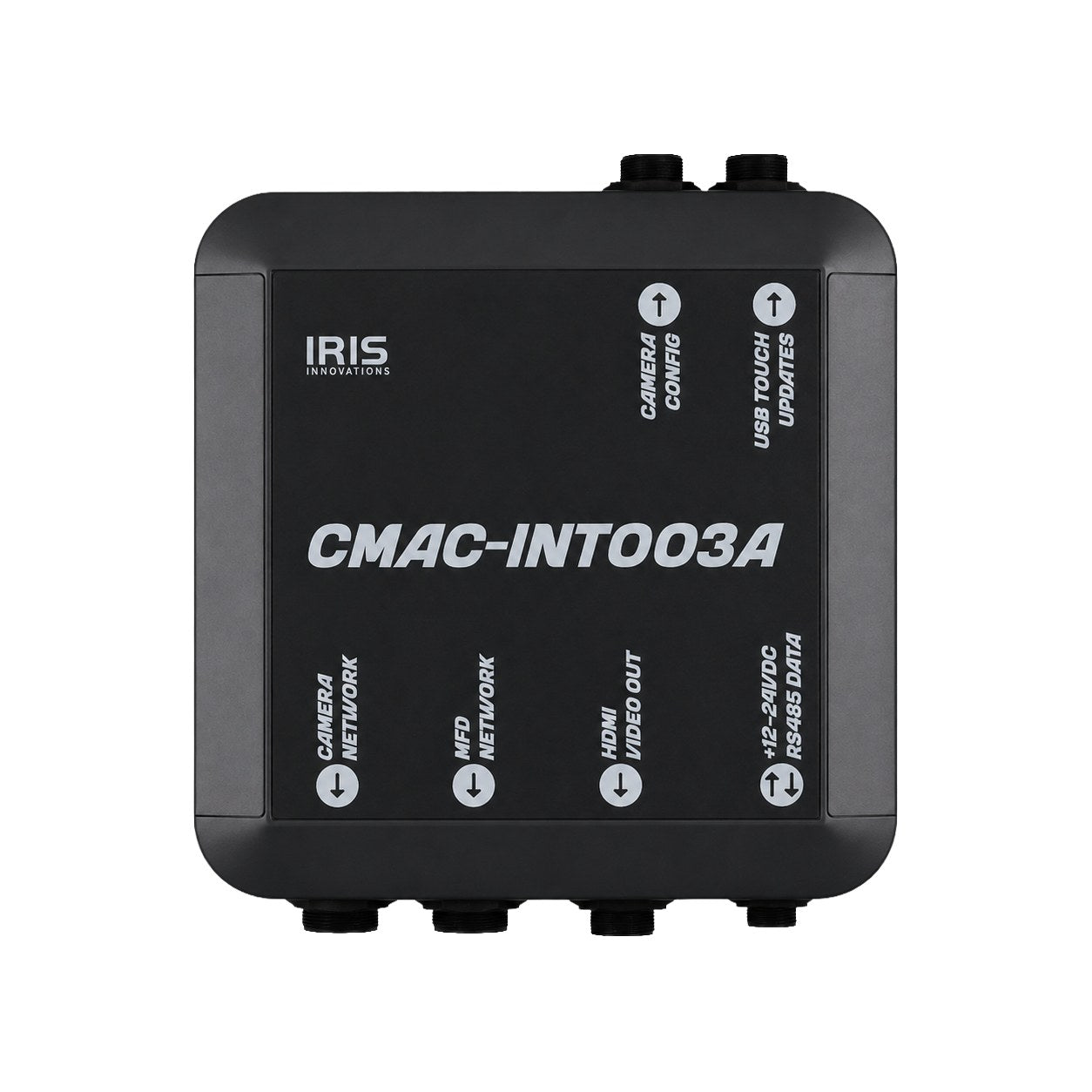

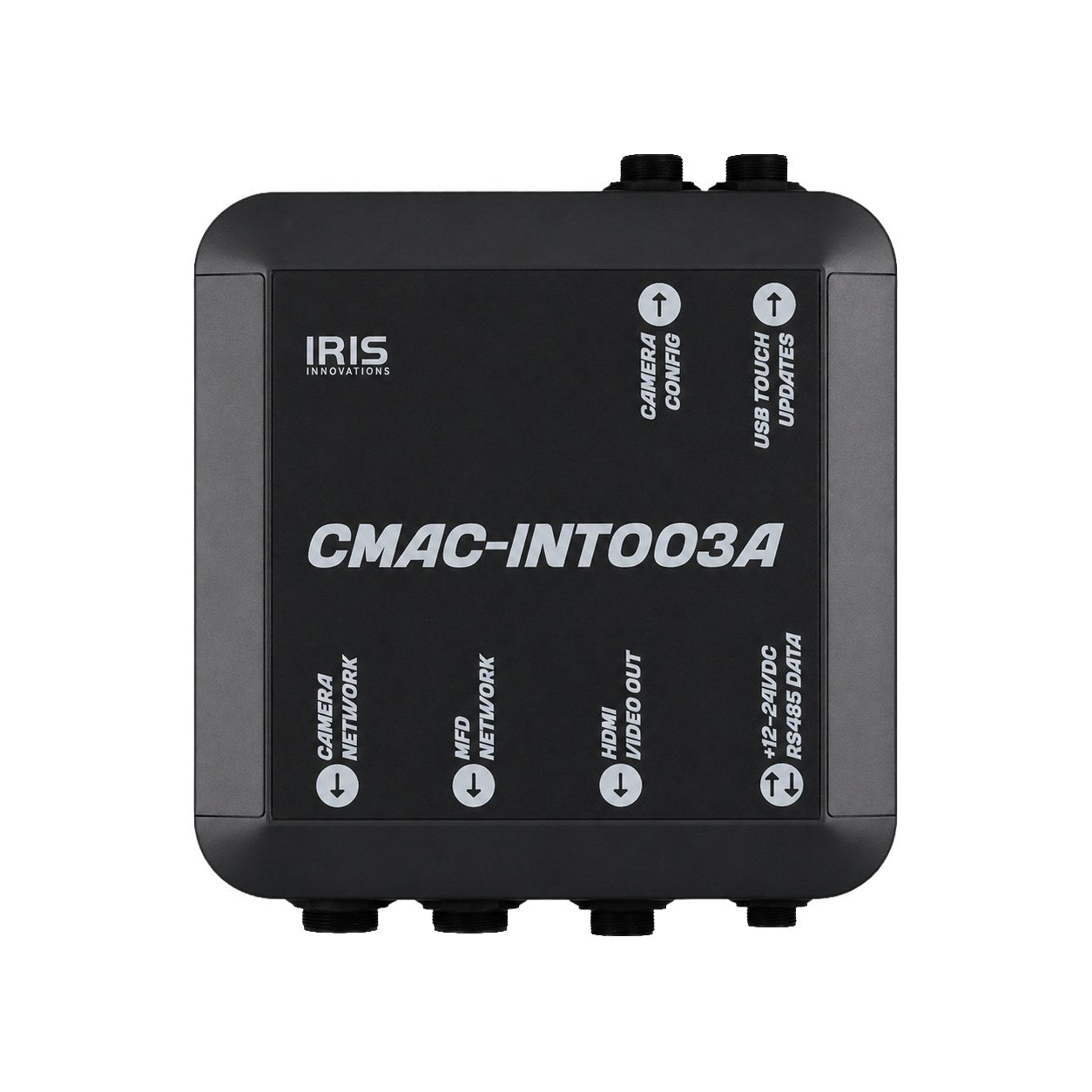

Iris CMAC-INT-003A IrisControl Host Interface for IP Cameras
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The CMAC-INT-003A is a compact IP camera interface that converts up to 32 network camera streams, at resolutions to 4K, into a single high-definition HDMI output for a chart plotter, monitor or television. A quad-core 64-bit ARM Cortex-A72 processor drives the IrisControl HTML5 application it hosts.
Through IrisControl you upload unlimited deck plans, drag and drop camera icons and switch and control cameras from a Garmin OneHelm, Raymarine, Simrad, B&G or Furuno display. RS485 serial data provides PTZ control for Iris controllable cameras including the ATOM-A418, A295, A395 and IRIS4106 ranges, and USB touch is supported on Garmin 8000 and 9000 series displays. This is a control and switching interface with no on-board recording; choose a CMAC recorder if footage must be stored.
PRODUCT DETAILS
- Converts up to 32 IP camera streams (to 4K) into one high-definition HDMI output
- Hosts the IrisControl HTML5 app for Garmin OneHelm, Raymarine, Simrad, B&G and Furuno
- Quad-core 64-bit ARM Cortex-A72 processor
- RS485 PTZ control for Iris ATOM-A418, A295, A395 and IRIS4106 cameras
- USB touch control on Garmin 8000 and 9000 series displays
- Upload unlimited deck plans with drag-and-drop camera icons
- Compact form factor; wide 12 to 24VDC input
- No on-board recording (control and switching only)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Interface
| Type | IP camera to HDMI interface and IrisControl host (no recording) |
| Processor | Quad-core 64-bit ARM Cortex-A72 @ 1.5GHz |
| Video Codec | H.264, H.264+, H.265 |
| IP Camera Capacity | Up to 32 IP cameras (to 4K resolution) |
| Analogue Inputs | Not supported |
Video Output
| Output | 1 x HDMI (high definition) |
Connectivity
| Serial Data | RS485 PTZ control (Pelco D, Iris variant) |
| Supported PTZ Cameras | Iris ATOM-A418, A295, A395, AX295, AX395, AX1280HD, IRIS4106, IRIS-EX4106 |
| Control Interface | Hosts IrisControl for Garmin OneHelm, Raymarine, Simrad, B&G and Furuno |
| USB Touch | Garmin 8xxx / 9xxx series MFDs |
Power
| Power | +12VDC to +24VDC; boot peak 1.5A, 400mA nominal |
Environmental
| Operating Temperature | -10C to +55C |
Compliance
| Approvals | CE, UKCA, FCC, RoHS, REACH, NDAA compliant; EN60945 Section 9 & 10 |
Physical
| Dimensions | 200 x 230 x 65 mm (incl panel connectors) |
| Weight | 1.1 kg |
