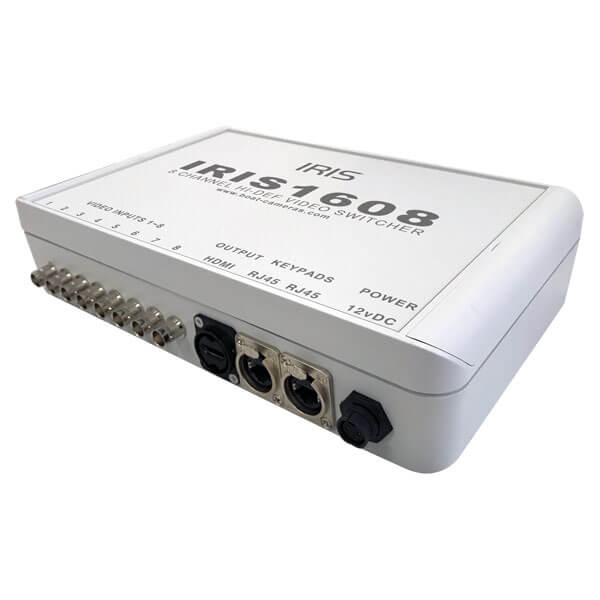

Iris IRIS1608 iHD 8-Channel HD Video Switcher with Keypad
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The IRIS1608 is the world's first dedicated marine high-definition video switcher, with eight camera inputs that can be switched to a single HDMI output to display real-time video from your high-definition Iris cameras on a suitable chart plotter or HD TV. It is compatible with chart plotters featuring a digital input, TVs with HDMI inputs and other HDMI-enabled media.
The system comprises a rugged control box and a low-profile, compact, waterproof keypad. The control box installs safely out of sight to keep cabling tidy, while the supplied IRIS580 keypad provides a simple control interface and connects over a single shielded CAT5 cable with a built-in RJ45 socket.
A second keypad port allows an additional IRIS580 keypad so video can be switched from more than one position. For digital inputs other than HDMI, such as DVI or HD-SDI, adapters are available from Iris.
PRODUCT DETAILS
- Eight camera inputs switched to a single HDMI output
- Supports analogue (CVBS) and HD-TVI camera formats
- Supplied with one waterproof IRIS580 keypad (IP66, UV stabilised)
- Keypad connects over a single shielded CAT5 cable with RJ45 socket
- Second keypad port for control from an additional position
- Rugged moisture-resistant control box installs out of sight
- Compatible with HDMI chart plotters, HD TVs and HDMI media
- DVI and HD-SDI adapters available from Iris
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Video
| Camera Inputs | 8 (Analogue CVBS / HD-TVI) |
| Video Output | 1 x HDMI (Hi-Def digital) |
Connectivity
| Keypad Ports | 2 (1 x IRIS580 keypad supplied) |
| Keypad Cabling | Shielded CAT5 with RJ45 socket |
