Garmin

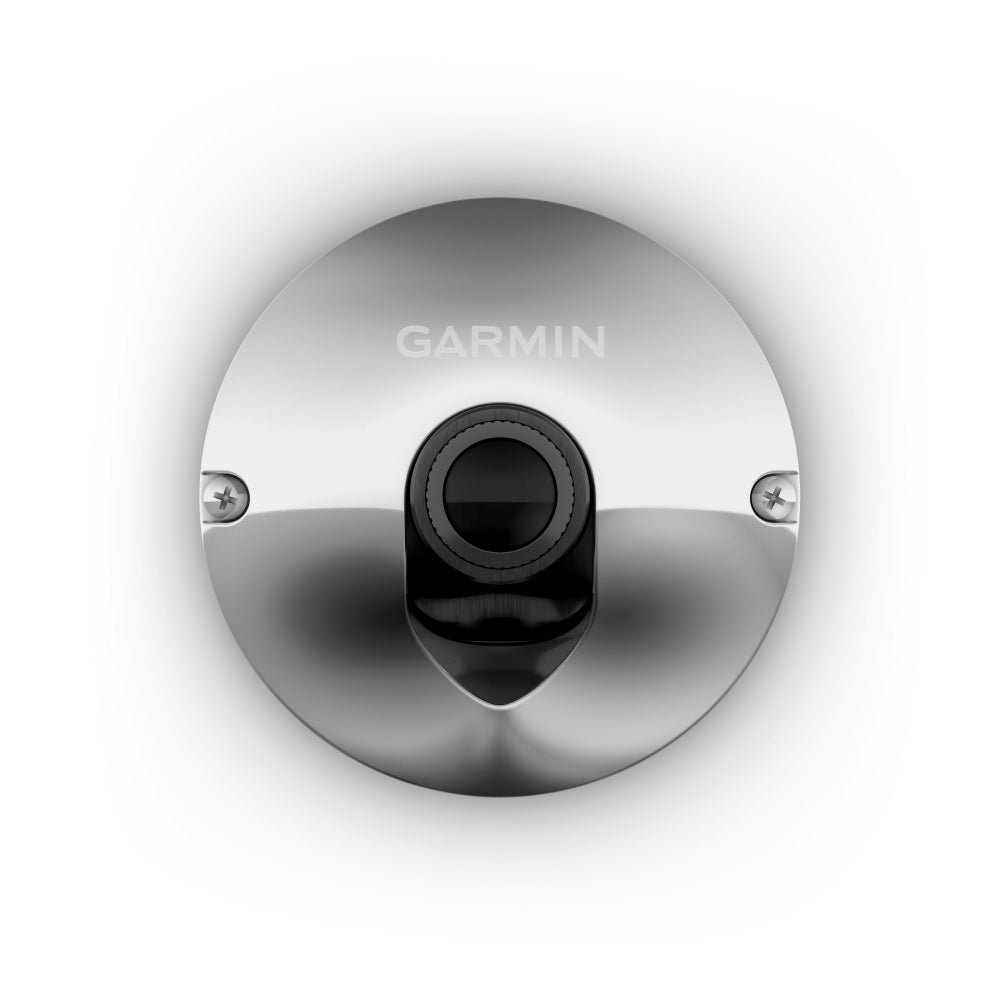

GC™ 255 Flush Mount Camera, Stainless steel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GC 255 is a flush-mount marine camera with a stainless steel thru-hull housing that sits sleek and low against the hull. It streams 1080p full HD video to compatible Garmin chartplotters, with a wide 160 degree horizontal field of view and multiple on-screen views including standard, wide-angle FishEye and overhead Bird's Eye, plus configurable distance markers and guidance lines to make docking and close-quarters manoeuvring easier.
The adjustable lens module tilts down by up to 35 degrees inside its enclosure for precise aiming, and a 1x to 4x digital zoom brings detail closer. The camera connects through the supplied GVAM 10 black box using Garmin BlueNet networking and is compatible with both Garmin BlueNet and Garmin Marine Network systems (full HD on BlueNet; up to 720p on the Garmin Marine Network).
PRODUCT DETAILS
- Flush-mount stainless steel thru-hull housing for a clean look
- 1080p full HD video with a wide 160 degree field of view
- Standard, FishEye and Bird's Eye views with docking guidance lines
- Adjustable lens tilts down up to 35 degrees; 1x to 4x digital zoom
- Garmin BlueNet networking; works with BlueNet and Marine Network
- Supplied with a GVAM 10 black box and 8 m coaxial cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Camera
| Camera type | Flush-mount thru-hull marine network camera |
| Resolution | 2 megapixels, 1080p (full HD on Garmin BlueNet; up to 720p on Garmin Marine Network) |
| Field of view | 160 degrees horizontal, 90 degrees vertical |
| Digital zoom | 1x to 4x |
| Lens adjustment | Adjustable lens module tilts down up to 35 degrees |
| On-screen views | Standard, wide-angle FishEye and Bird's Eye, with distance markers and guidance lines |
Connectivity
| Networking | Garmin BlueNet (compatible with Garmin BlueNet and Garmin Marine Network) |
| Cable | 8 m (26.25 ft) coaxial cable to GVAM 10 black box (supplied) |
Electrical
| Power source | GVAM 10 black box, 10 to 32 V DC |
| Power consumption | GVAM 10 black box: 4.1 W average, 4.5 W peak |
| Fuse | 2 A (in GVAM 10 black box power cable) |
Physical
| Camera weight | 655 g (1 lb 7.1 oz) |
| Case material | Stainless steel and polycarbonate |
| Mounting | Flush thru-hull (55 mm hole for hulls under 12 mm; 57 mm for thicker) |
| GVAM 10 black box dimensions | 151.31 x 64.3 x 30.25 mm; weight 325 g |
| Compass-safe distance | 2.54 cm (1 in) |
Environmental
| Water rating | IPX7 |
| Operating temperature range | -20 to 55 C (-4 to 131 F) |
