Simrad

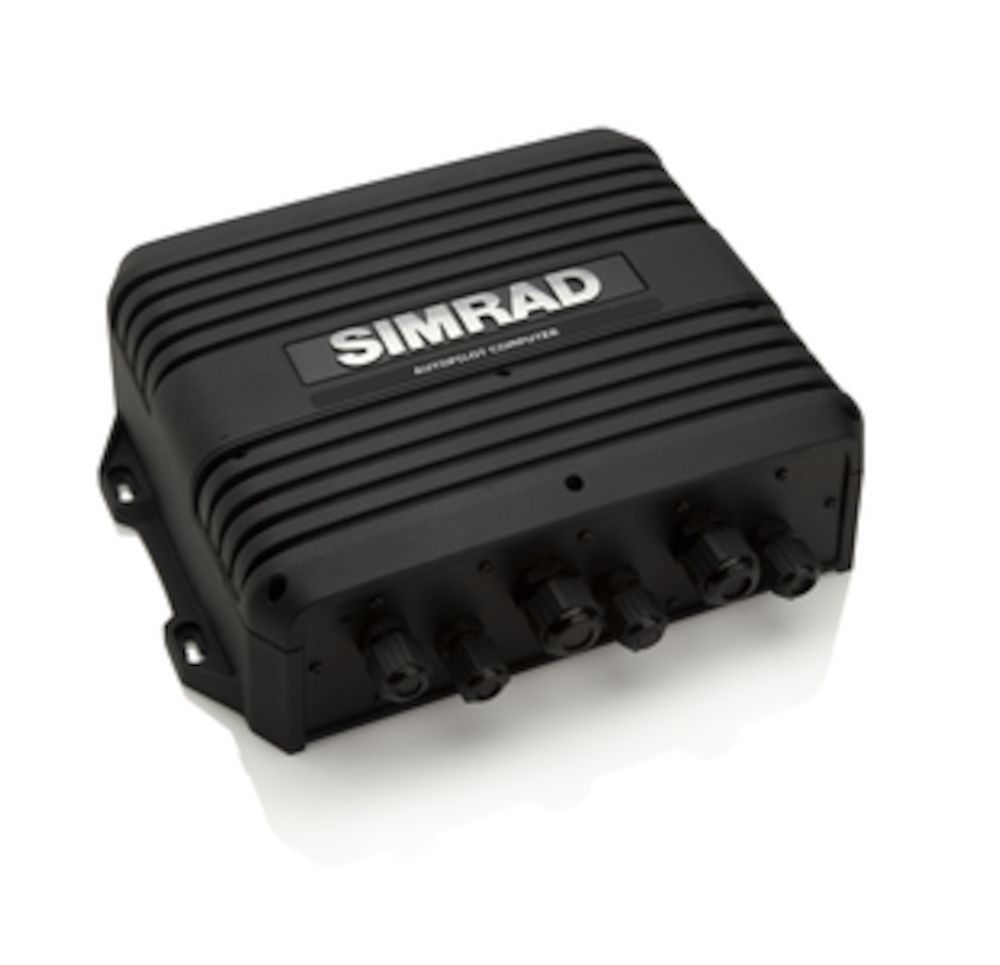

Simrad AC80A SIMRAD AUTOPILOT COMPUTER
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Simrad AC80A is a professional autopilot drive computer for analogue or proportional control of a rudder or thruster. It drives the steering system using a galvanically isolated analogue voltage or low-level current output (4-20 mA), with support for frequency, voltage or current angle rudder feedback, digital drive handshake and an external mode input.
Part of the Simrad AP60 and AP70/AP80 autopilot family, the AC80A includes a built-in CAN-bus (SimNet) supply and four channels of IEC 61162-1 (NMEA 0183) receive and transmit for integration with compatible navigation and steering equipment.
PRODUCT DETAILS
- Analogue or proportional rudder and thruster control
- Galvanically isolated 4-20 mA analogue output
- Frequency, voltage or current rudder feedback
- Four IEC 61162-1 (NMEA 0183) receive and transmit channels
- Built-in CAN bus (SimNet) supply
- For Simrad AP60 and AP70/AP80 systems
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
B&G, Lowrance, Simrad RF300 Rudder Feedback
Image coming soonRF14XU Rudder Feedback - Frequency & Voltage
Simrad NF80 Non Follow Up remote unit with display
JS10 steering lever
Simrad FU80 Follow UP remote unit with display
Simrad QS80 Quickstick remote unit with display
Simrad RF45X Rugged rudder Feedback Unit
Specifications
| Drive Type | Analogue or proportional control of rudder or thruster |
| Analogue Output | Galvanically isolated, 4-20 mA |
| Rudder Feedback | Frequency, voltage or current angle |
| NMEA 0183 Channels | 4 channel IEC 61162-1 RX/TX |
| CAN Bus | Built-in CAN bus supply |
| Compatible Systems | Simrad AP70 and AP80 |
No videos available for this product.
No downloads available for this product.
No frequently asked questions for this product.
