Garmin

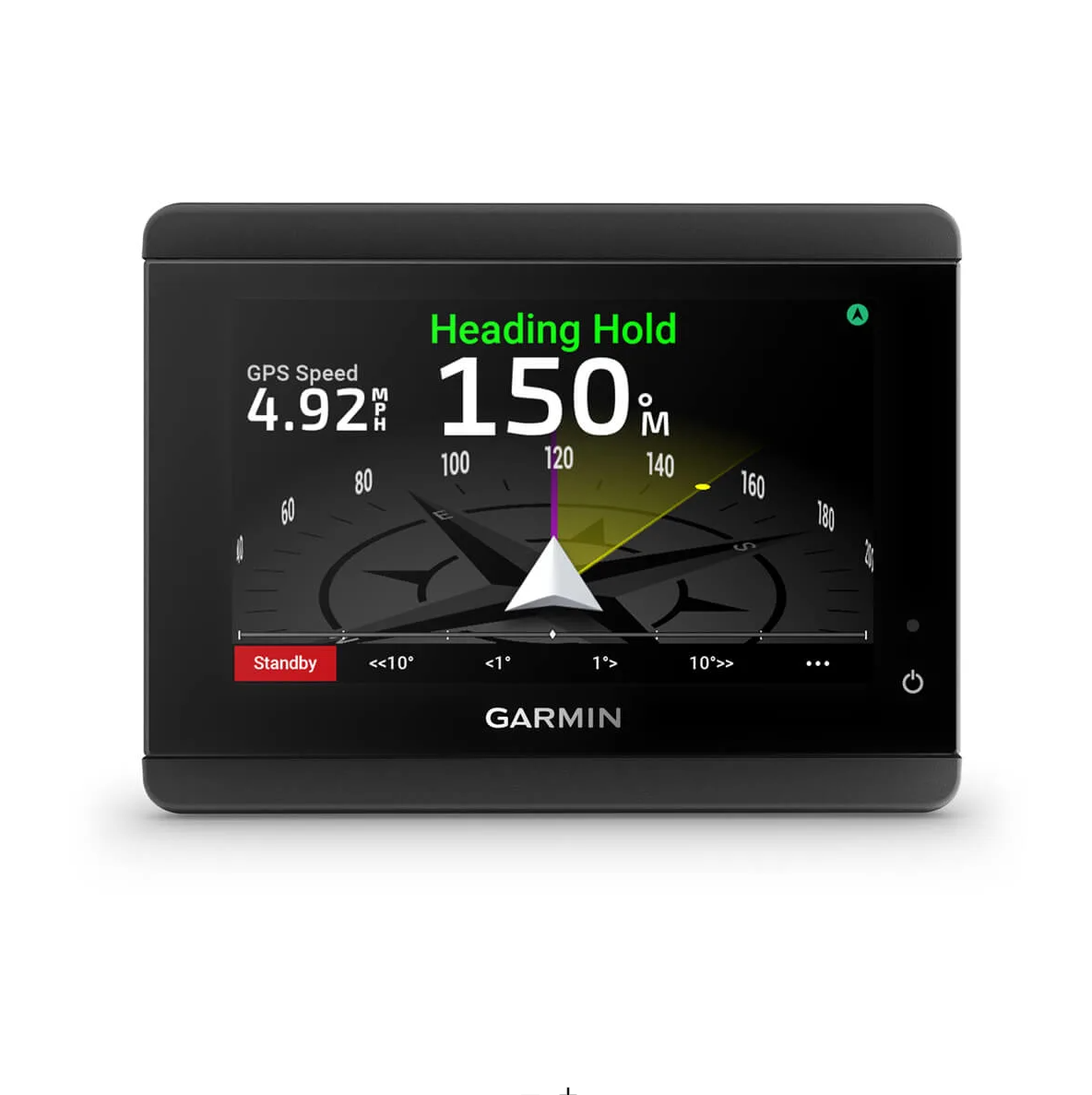

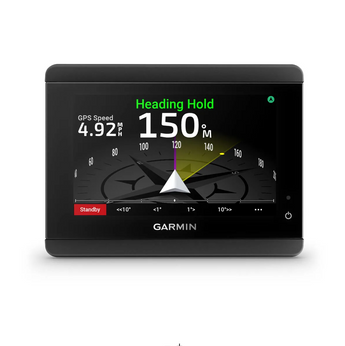

GHC™ 50 Marine Autopilot Instrument
£730.00
/
Tax included.
Shipping calculated at checkout.
010-02731-00
The Garmin GHC 50 is a dedicated marine autopilot instrument with a bright 5 in. WVGA colour touchscreen. It controls a compatible Garmin Reactor autopilot and is powered directly by the NMEA 2000 network.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GHC 50 is a premium stand-alone autopilot instrument that puts full control of a Garmin Reactor autopilot at your fingertips. Its 5 in. WVGA colour touchscreen is exceptionally bright at 1200 cd/m2 and finished with an anti-glare, anti-fingerprint glass lens, so heading, rudder angle and autopilot status stay clear in direct sunlight and at night.
The instrument is powered by and communicates over the NMEA 2000 network, removing the need for a separate power connection, and it can also link to the Garmin Marine Network so software updates can be applied through a connected chartplotter. Day and night colour modes keep the display comfortable in any light, and the unit can be paired with the Reactor wireless remote for control away from the helm. The fully-gasketed polycarbonate housing is rated to IPX7 and flush mounts neatly into the dashboard.
PRODUCT DETAILS
- Bright 5 in. WVGA colour touchscreen with anti-glare, anti-fingerprint glass lens
- High 1200 cd/m2 brightness for clear reading in direct sunlight
- Stand-alone autopilot instrument and helm control for Garmin Reactor autopilots
- Powered by the NMEA 2000 network, so no separate power feed is required
- Connects to the Garmin Marine Network for software updates via a chartplotter
- Day and night display modes with selectable colour schemes
- Fully-gasketed polycarbonate case rated to IPX7
- Pairs with the Reactor wireless autopilot remote control
- GHC 50 autopilot instrument
- Sun cover
- Flush mount gasket, template and hardware (wood screws, nut plates and machine screws)
- Trim caps
- NMEA 2000 T-connectors
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 5 in. (12.7 cm) |
| Display type | WVGA colour touchscreen with anti-glare finish |
| Brightness | 1200 cd/m2 (NIT) |
Physical
| Dimensions without sun cover (H x W x D) | 105 x 140 x 51 mm (4.13 x 5.51 x 2.01 in.) |
| Dimensions with sun cover (H x W x D) | 113 x 144 x 56 mm (4.45 x 5.67 x 2.20 in.) |
| Weight without sun cover | 328 g (11.57 oz.) |
| Case material | Fully-gasketed polycarbonate |
| Lens material | Glass with an anti-glare and anti-fingerprint finish |
| Water rating | IEC 60529 IPX7 |
| Operating temperature range | -15 to 55 C (5 to 131 F) |
| Compass-safe distance | 20 cm (7.87 in.) |
Electrical
| NMEA 2000 input voltage | 9 to 16 Vdc |
| Typical current draw at 12 Vdc | 220 mA |
| Max. current draw at 12 Vdc | 400 mA |
| Power usage | 5.85 W max |
| NMEA 2000 LEN at 9 Vdc | 13 (650 mA) |
Connectivity
| Network interface | NMEA 2000 (powered by network); Garmin Marine Network for software updates |
| Mounting | Flush mount |
No videos available for this product.
What size is the GHC 50 screen?
The GHC 50 has a 5 in. WVGA colour touchscreen with a bright 1200 cd/m2 output and an anti-glare, anti-fingerprint glass lens.
Does the GHC 50 require a separate power connection?
No. The GHC 50 is powered by the NMEA 2000 network. Its NMEA 2000 LEN is 13 (650 mA) at 9 Vdc.
Which autopilots does the GHC 50 work with?
It is a control instrument for compatible Garmin Reactor autopilot systems, connecting on the same NMEA 2000 network as the other autopilot components.
How are software updates applied to the GHC 50?
The GHC 50 can be connected to the Garmin Marine Network using a 9-pin cable so software updates can be applied through a compatible Garmin chartplotter. It cannot be updated using only a NMEA 2000 connection.
Is the GHC 50 waterproof?
Yes. The fully-gasketed polycarbonate case is rated to IEC 60529 IPX7 and withstands incidental immersion in up to 1 m of water for up to 30 minutes.
Does the GHC 50 come with a sun cover?
Yes. A protective sun cover is included. With the sun cover fitted the unit measures 113 x 144 x 56 mm.
