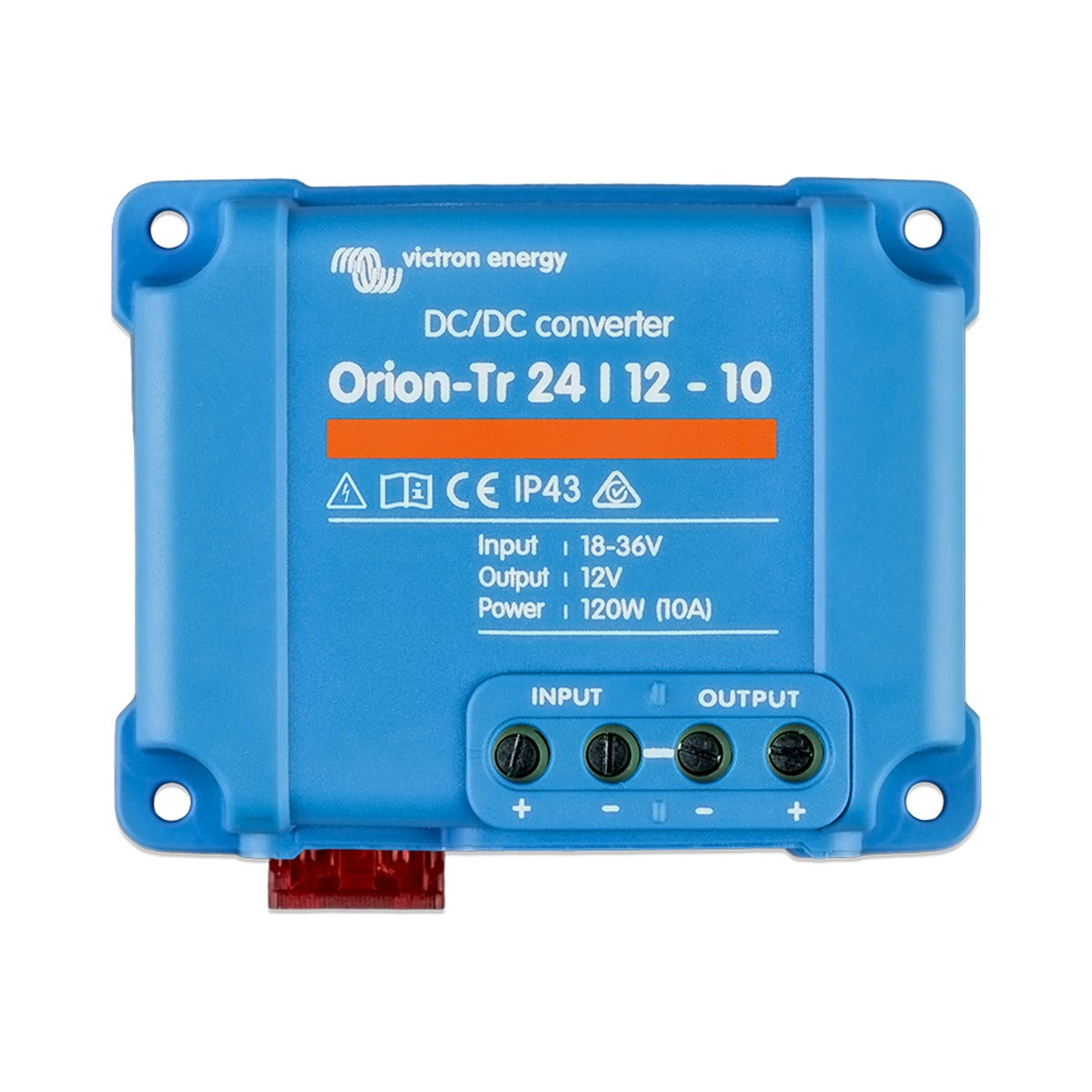

Victron Orion-Tr 24/12-10 (120W) Non-Isolated DC-DC Converter
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Orion-Tr 24/12-10 is a non-isolated DC-DC converter that steps a 24V supply down to a regulated 12.5V output, delivering up to 10A (120W continuous). It is designed to run 12V equipment from a 24V system rather than to charge a battery; for controlled battery charging an Orion-Tr Smart charger should be used instead.
Synchronous rectification gives a high full-load efficiency of around 97 percent, keeping heat and input current low. The output stays stable across an 18 to 35V input range, making the converter a dependable supply for electronics, lighting and other 12V loads on boats, in vehicles and in off-grid installations.
The unit uses screw terminals and installs without special tools, and offers IP43 protection for the electronics when mounted with the terminals facing downwards.
PRODUCT DETAILS
- 24V to 12V non-isolated conversion at up to 10A (120W continuous)
- Regulated 12.5V output for running 12V equipment from a 24V system
- High full-load efficiency of around 97 percent via synchronous rectification
- Wide 18 to 35V input range
- Screw terminals, no special tools needed for installation
- IP43 protection when terminals face downwards
- Not intended for battery charging; use an Orion-Tr Smart for charging
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Input voltage range | 18 to 35 V |
| Output voltage (nominal) | 12.5 V |
| Continuous output current | 10 A |
| Continuous output power | 120 W |
| Galvanic isolation | Non-isolated |
| Bluetooth | No |
| Protection category | IP43 |
Input
| Input voltage range | 18 to 35 V |
| Off load current | < 45 mA |
Output
| Output voltage | 12.5 V |
| Continuous output current | 10 A |
| Maximum output current | 12 A |
| Maximum efficiency | 97 % |
General
| Galvanic isolation | No |
Environmental
| Operating temperature range | -20 to +55 degrees C (derate 3 % per degree C above 40) |
Physical
| DC connection | Screw terminals |
| Maximum cable cross-section | 6 mm2 (AWG10) |
| Weight | 0.2 kg |
| Dimensions (h x w x d) | 73 x 94 x 37 mm |
| Protection category | IP43 |
Conformance
| Safety | EN 60950 |
| Emission | EN 61000-6-3, EN 55014-1 |
| Immunity | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive | ECE R10-6 |
