Garmin Boat Switch
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

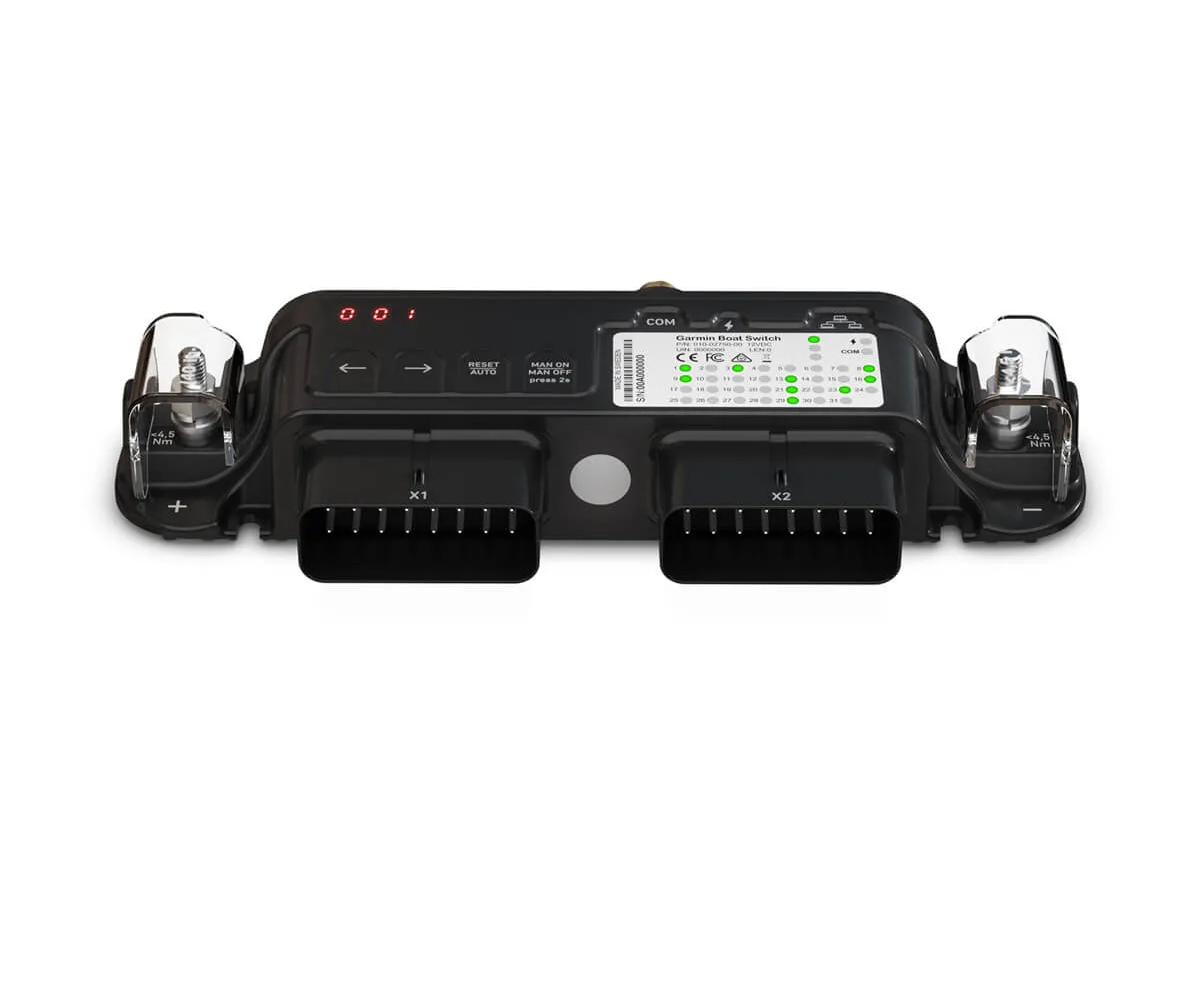

The Garmin Boat Switch brings the integrated-boat experience to compatible GPSMAP and ECHOMAP chartplotters, replacing rows of physical switches and fuse panels with digital control on the helm display. As a pre-configured module it connects to the NMEA 2000 network and to the vessel's circuits through two supplied wiring harnesses, ready to operate up to 20 circuits with minimal setup.
Channels provide latching, dimmable and momentary outputs, so you can run navigation and anchor lighting, bilge and livewell pumps, interior lights and accessories, along with always-on feeds. The module also monitors up to four tanks and battery voltage, reporting levels back to the chartplotter. Software fuses protect every channel and can be reset from the display or the hard keys on the unit, and the rugged IPX65 polycarbonate housing suits permanent installation. A dedicated 50 A power feed is required, as the unit does not draw power from the NMEA 2000 backbone.
PRODUCT DETAILS
- Pre-configured digital switching for compatible GPSMAP and ECHOMAP chartplotters
- Operate up to 20 circuits directly from the chartplotter
- Latching, dimmable, momentary and always-on outputs
- Monitor up to four tanks plus battery voltage
- Software fuses on every channel, resettable from the display or the module
- Manual hard-key control on the unit if the chartplotter is unavailable
- NMEA 2000 connection (LEN 0) with a dedicated 50 A power feed
- Rugged IPX65 polycarbonate housing, -20 C to +55 C
- Garmin Boat Switch module
- X1 wiring harness with 18 in. flying leads
- X2 wiring harness with 18 in. flying leads
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Module/Switching
| Circuits | Operates up to 20 circuits from a compatible GPSMAP or ECHOMAP chartplotter |
| Switch types | Latching, dimmable and momentary outputs; constant (always-on) outputs |
| Tank monitoring | Up to four tanks (resistive and voltage sensors) plus battery voltage |
| Circuit protection | Software fuses on each channel, resettable from the chartplotter or the module hard keys |
Electrical
| Input voltage | 0 to 16 V DC |
| Maximum power usage | 50 A at 12 V DC (50 A total across active channels) |
| Typical current draw | Approximately 65 mA at 12 V DC |
| Fuse | 50 A (inline circuit breaker or fuse on the supply feed) |
Connectivity
| Communication | NMEA 2000 |
| NMEA 2000 LEN | 0 (at 9 V DC); requires a dedicated power feed, not powered from the network |
| Power connection | Two M6 bolt terminals |
Physical
| Dimensions | 229 x 106 x 41 mm |
| Weight | 400 g |
| Material | Polycarbonate |
| Compass-safe distance | 5 cm |
Environmental
| Water rating | IEC 60529 IPX65 |
| Operating temperature | -20 C to +55 C |
General
| Compatibility | Compatible GPSMAP and ECHOMAP chartplotters |
