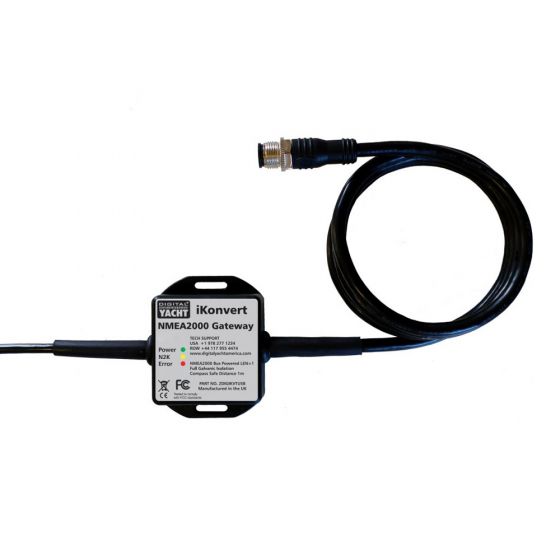

Digital Yacht iKonvert NMEA 2000 to NMEA 0183 Converter
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The iKonvert Gateway lets legacy NMEA 0183 equipment share data with a modern NMEA 2000 network, and vice versa. With more and more instruments moving to NMEA 2000, most boats now run a mixture of the two standards, and iKonvert provides safe, accurate, bidirectional conversion between them. It draws its power and data directly from the NMEA 2000 backbone through an integral Micro drop cable, while the NMEA 0183 side uses an opto-isolated ISO cable with bare-ended wires for connection to dedicated hardware.
Operation is configured through four internal DIP switches, selecting from a range of preset modes covering GPS, wind, heading, depth, AIS, autopilot and full multi-sentence conversion at 4800, 38400 or 115200 baud. A dedicated RAW mode encapsulates NMEA 2000 PGNs in a proprietary sentence at 230400 baud for use with software such as CANboat and Signal K. Full galvanic isolation protects both networks, and a compass-safe distance of 0.5m is recommended when siting the unit below deck.
PRODUCT DETAILS
- Bidirectional NMEA 2000 to NMEA 0183 conversion
- Full galvanic isolation between both networks
- Powered and fed directly from the NMEA 2000 backbone
- DIP-switch selection of preset conversion modes
- Converts GPS, navigation, instrument, AIS and XDR data
- RAW mode outputs NMEA 2000 PGNs over serial at 230400 baud
- Integral 1m opto-isolated NMEA 0183 ISO cable
- Compatible with CANboat and Signal K server
- iKonvert gateway with integral NMEA 2000 Micro drop cable
- Integral 1m opto-isolated NMEA 0183 ISO cable
- Quick start guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Function | Bidirectional NMEA 2000 to NMEA 0183 gateway |
| NMEA 0183 Interface | Opto-isolated (ISO), integral 1m bare-ended cable |
| NMEA 2000 Connector | Micro drop cable, male |
| Isolation | Full galvanic isolation between networks |
| Configuration | Four internal DIP switches |
| NMEA 0183 Baud Rates | 4800, 38400 or 115200 baud |
| RAW Mode | NMEA 2000 PGNs over serial at 230400 baud |
Electrical
| Power Source | Powered from NMEA 2000 network |
Physical
| Fixing | Two slotted 4mm diameter fixing holes |
| Compass Safe Distance | 0.5 m |
