Garmin
GHS™ 11 Wired VHF Handset
£0.00
/
Tax included.
Shipping calculated at checkout.
010-01759-00

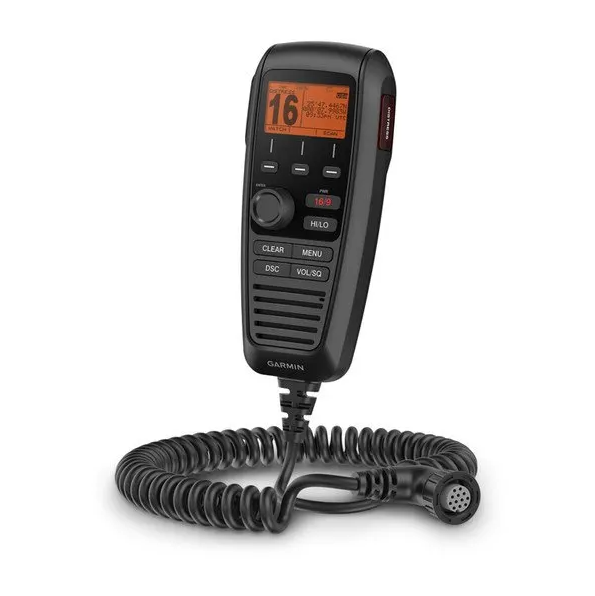

The Garmin GHS 11 is a wired remote handset that adds a second control station to a compatible Garmin fixed-mount VHF radio. It includes a 10 m extension cable and is IPX7 water-rated.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GHS 11 is a wired remote handset that extends full control of a compatible Garmin fixed-mount VHF radio to a second station, making it ideal for vessels with a flybridge, cockpit or below-deck helm. It provides complete radio operation away from the main unit and supports intercom communication between connected stations, so crew can talk to one another around the boat.
The handset is supplied with a 10 m extension cable, and up to two additional cables can be connected in series for a maximum run of 30 m, giving flexibility for larger installations. The IPX7-rated housing withstands the marine environment, and the included cradle, connector and mounting hardware make for a clean, secure installation. The GHS 11 works as a second station on compatible Garmin VHF radios such as the VHF 115/215 and VHF 315 series.
PRODUCT DETAILS
- Wired remote handset that adds a second control station to a compatible Garmin VHF radio
- Full radio control and intercom communication between stations
- Supplied with a 10 m (32 ft.) extension cable
- Extendable with up to two additional cables for a maximum total run of 30 m (96 ft.)
- 1 W audio output for clear communication
- IPX7 water-rated for the marine environment
- GHS 11 wired handset
- Handset cradle
- Connector and mounting plate
- 10 m (32 ft.) extension cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Wired remote VHF handset (second station) |
| Compatibility | For use with compatible Garmin fixed-mount VHF radios (such as VHF 115/215 and VHF 315) |
Connectivity
| Cable | Includes 10 m (32 ft.) extension cable; up to two additional cables in series, max total 30 m (96 ft.) |
Display
| Audio output power | 1 W (4 ohms at 10% distortion) |
Physical
| Dimensions (H x W x D) | 15.4 x 6.9 x 4.0 cm (6.1 x 2.7 x 1.6 in.) |
| Weight (including cable) | 0.698 kg (1.54 lb.) |
| Compass-safe distance | 70 cm (27.5 in.) |
Environmental
| Operating temperature range | -15 to 55°C (5 to 131°F) |
| Storage temperature range | -20 to 70°C (-4 to 158°F) |
| Water rating | IEC 60529 IPX7 |
No videos available for this product.
Which radios is the GHS 11 compatible with?
The GHS 11 is a wired second-station handset for compatible Garmin fixed-mount VHF radios, including the VHF 115/215 and VHF 315 series. Check your radio's documentation to confirm handset support.
How far can the GHS 11 be mounted from the radio?
It is supplied with a 10 m (32 ft.) extension cable. Up to two additional extension cables can be connected in series for a maximum total run of 30 m (96 ft.).
Does the GHS 11 support intercom?
Yes. When used as a second station, the GHS 11 supports intercom communication between connected stations on a compatible radio.
Is the GHS 11 waterproof?
The handset carries an IEC 60529 IPX7 rating, meaning it withstands incidental immersion in 1 metre of water for up to 30 minutes.
