Garmin 1.2 Litre Autopilot Pump Kit
£0.00
/
Tax included.
Shipping calculated at checkout.
010-11098-00
The Garmin 1.2 Litre Autopilot Pump Kit is a hydraulic drive pump for Garmin GHP and Reactor autopilots. It steers a balanced-cylinder hydraulic system on commands from the autopilot ECU.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

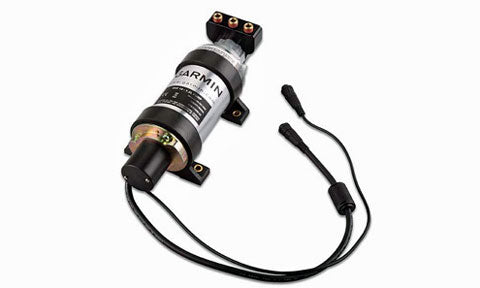

The Garmin 1.2 Litre Autopilot Pump Kit is the hydraulic drive that allows a Garmin GHP or Reactor autopilot to steer a boat fitted with hydraulic steering, sized for smaller hydraulic systems. The pump interacts with the existing steering, responding to commands from the autopilot ECU, and is selected to match the size and type of steering on the vessel.
It is designed for balanced-cylinder steering systems and can be adapted to an unbalanced cylinder using the optional unbalanced valve kit. Two sets of hose-connector fittings give flexibility when plumbing the pump into single-helm, dual-helm and power-assist layouts, and an integral shutoff valve lets the pump be isolated and removed for service without disconnecting the hydraulic lines or losing manual steering. The pump should be mounted within 0.5 m of the autopilot ECU, either horizontally or vertically with the connectors facing up, and treated periodically with a marine corrosion inhibitor.
PRODUCT DETAILS
- Hydraulic drive pump for Garmin GHP and Reactor autopilot systems
- 1.2 L capacity for smaller hydraulic steering systems
- For balanced-cylinder steering; adaptable to unbalanced cylinders with the optional unbalanced kit
- Two sets of hose-connector fittings for flexible plumbing
- Integral shutoff valve isolates the pump for service without disconnecting hydraulic lines
- Mounts horizontally or vertically (connectors up) within 0.5 m of the autopilot ECU
- 1.2 L hydraulic pump
- Pump-to-ECU cables
- Plugs for unused pump fittings
- Mounting screws
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Pump
| Type | Hydraulic autopilot drive pump (1.2 L) |
| Steering system compatibility | Balanced-cylinder hydraulic steering; adaptable to an unbalanced cylinder with the optional unbalanced kit (010-11201-00) |
| Mounting proximity | Must be mounted within 0.5 m (19 in.) of the autopilot ECU; pump-to-ECU cables cannot be extended |
Hydraulic
| Connector fittings | Two sets of hose-connector fittings (upper and lower); connect no more than three hoses (port, starboard and return) |
| Minimum hydraulic hose | Machine-crimped or field-replaceable fittings rated to at least 1000 lbf/in2 |
Physical
| Dimensions (W x H x D) | 279.4 x 119.4 x 94 mm (11 x 4.69 x 3.69 in.) |
| Weight | 3.65 kg (8.05 lb.) |
| Operating temperature range | -15 to 55 C (5 to 131 F) |
Electrical
| Motor cable length | 0.5 m (19 in.) |
| Main power usage | Varies based on hydraulic loading |
No videos available for this product.
What is the 1.2 Litre Autopilot Pump Kit for?
It is the hydraulic drive pump that lets a Garmin GHP or Reactor autopilot steer a boat with hydraulic steering, sized for smaller hydraulic systems. It acts on the existing steering on commands from the autopilot ECU.
Does this pump suit an unbalanced steering cylinder?
The pump is designed for a balanced-cylinder steering system but can be adapted for an unbalanced cylinder by fitting the optional unbalanced valve kit (Garmin part number 010-11201-00).
How close to the ECU must the pump be mounted?
The pump must be located within 0.5 m (19 in.) of the autopilot ECU because the cables connecting the pump to the ECU cannot be extended.
Should I choose the 1.2 L or the 2.0 L pump?
The correct pump depends on the size and type of your hydraulic steering system. The 1.2 L pump suits smaller systems; consult the Garmin autopilot compatibility guide to confirm the right pump for your cylinder.
How much does the pump weigh?
The 1.2 L pump weighs 3.65 kg (8.05 lb.) and measures 279.4 x 119.4 x 94 mm.
