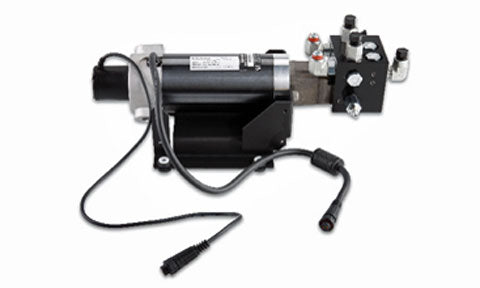

Garmin 2.1 Litre High Performance Autopilot Pump Kit
£0.00
/
Tax included.
Shipping calculated at checkout.
010-11099-10
The Garmin 2.1 Litre High-Performance Autopilot Pump Kit is a higher-displacement hydraulic drive pump for Garmin GHP and Reactor autopilots, suited to larger hydraulic steering systems.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin 2.1 Litre High-Performance Autopilot Pump Kit is the hydraulic drive for larger boats running a Garmin GHP or Reactor autopilot on hydraulic steering. With greater displacement than the 1.2 L and 2.0 L pumps, it delivers the flow needed to move bigger steering cylinders while responding to commands from the autopilot ECU.
The pump uses SAE #6 cylinder ports and SAE #4 helm ports, and must be plumbed with hydraulic hose and fittings rated to at least 1000 lbf/in2. As with all Garmin autopilot pumps, it should be mounted within 0.5 m of the ECU, either horizontally or vertically with the connectors facing up, because the pump-to-ECU cables cannot be extended. Choose the pump to match the size and type of steering on your vessel using the Garmin autopilot compatibility guide.
PRODUCT DETAILS
- High-performance hydraulic drive pump for Garmin GHP and Reactor autopilots
- 2.1 L capacity for larger hydraulic steering systems
- SAE #6 cylinder ports and SAE #4 helm ports
- Robust pump and motor assembly for higher hydraulic demand
- Mounts within 0.5 m of the autopilot ECU, horizontally or vertically with connectors up
- 2.1 L high-performance hydraulic pump
- Pump-to-ECU cables
- Plugs for unused pump fittings
- Mounting screws
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Pump
| Type | High-performance hydraulic autopilot drive pump (2.1 L, compact) |
| Application | Higher-displacement pump for larger hydraulic steering systems |
| Mounting proximity | Must be mounted within 0.5 m (19 in.) of the autopilot ECU; pump-to-ECU cables cannot be extended |
Hydraulic
| Cylinder (C) ports | SAE #6 |
| Helm (H) ports | SAE #4 |
| Minimum hydraulic hose | Machine-crimped or field-replaceable fittings rated to at least 1000 lbf/in2 |
Physical
| Dimensions (L x W x H) | 420 x 150 x 190 mm (16.5 x 6 x 7.5 in.) |
| Weight | 8 kg (17.6 lb.) |
| Operating temperature range | -15 to 55 C (5 to 131 F) |
Electrical
| Motor cable length | 0.5 m (19 in.) |
| Main power usage | Varies based on hydraulic loading |
No videos available for this product.
What is the 2.1 Litre High-Performance Pump Kit for?
It is the highest-displacement Garmin autopilot drive pump, intended for larger hydraulic steering systems on boats running a Garmin GHP or Reactor autopilot.
What port sizes does this pump use?
The 2.1 L pump uses SAE #6 cylinder (C) ports and SAE #4 helm (H) ports. Use hydraulic hose and fittings rated to at least 1000 lbf/in2.
How close to the ECU must the pump be mounted?
The pump must be located within 0.5 m (19 in.) of the autopilot ECU because the cables connecting the pump to the ECU cannot be extended.
Which pump should I choose?
The right pump depends on the size and type of your hydraulic steering system. The 2.1 L high-performance pump suits larger systems; consult the Garmin autopilot compatibility guide to confirm the correct pump for your cylinder.
How much does the pump weigh?
The 2.1 L high-performance pump weighs 8 kg (17.6 lb.) and measures 420 x 150 x 190 mm.
