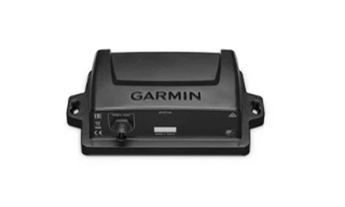

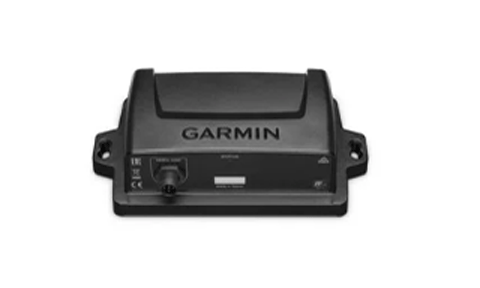

Garmin 9-axis Heading Sensor
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin 9-axis heading sensor provides accurate, responsive heading information to a Garmin NMEA 2000 system. Using 9-axis MEMS technology, it delivers heading to within plus or minus 3 degrees at a 10 Hz output rate, along with rate of turn and attitude data. Feeding this to a compatible chartplotter stabilises the chart, radar overlay and MARPA targets so they remain correctly oriented while manoeuvring.
The MEMS design allows the sensor to be installed in any orientation, provided it is sited away from magnetic interference, and its compass-safe distance is negligible. It connects to an existing NMEA 2000 network and is set up with menu-based or basic calibration on a compatible Garmin chartplotter. The fully gasketed, high-impact plastic housing is rated to IPX7 and accepts a NMEA 2000 input of 9 to 16 Vdc.
PRODUCT DETAILS
- 9-axis MEMS heading sensor delivers heading accurate to plus or minus 3 degrees
- Fast 10 Hz heading output rate for responsive chart and radar stabilisation
- Installs in any orientation, away from magnetic interference
- Outputs vessel heading, rate of turn and attitude data over NMEA 2000
- Menu-based or basic calibration with a compatible Garmin chartplotter
- Fully gasketed, high-impact plastic housing rated to IPX7
- Negligible compass-safe distance for flexible siting
- 9-axis heading sensor with NMEA 2000 drop cable
- NMEA 2000 T-connector
- Mounting screws
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Heading
| Sensor type | 9-axis MEMS heading sensor for an existing NMEA 2000 network |
| Heading accuracy | Plus or minus 3 degrees |
| Heading output rate | 10 Hz |
| Mounting orientation | 9-axis MEMS technology allows installation in any orientation, away from magnetic interference |
| Outputs | Vessel heading, rate of turn and attitude data |
| Calibration | Menu-based or basic calibration via compatible Garmin chartplotter |
Connectivity
| Interface | NMEA 2000 (connects to an existing network) |
| NMEA 2000 LEN | 4 (200 mA) |
Electrical
| NMEA 2000 input voltage | 9 to 16 Vdc |
Physical
| Dimensions (length x width x height) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| Weight | 200 g (7 oz.) |
| Material | Fully gasketed, high-impact plastic |
| Compass-safe distance | Negligible |
Environmental
| Water resistance | IEC 60529 IPX7 |
| Operating temperature range | -15 to 70C (5 to 158F) |
General
| Warranty | 2 years |
