Garmin Airmar DT800 NMEA2000 Thru-Hull Depth and Temp. Smart Sensor for 0 to 15 Degree Tilt
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin AIRMAR DT800 is a plastic tilted-element thru-hull smart sensor that delivers depth and water temperature to your NMEA 2000 network. Embedded micro-electronics process the signals inside the sensor for display on any compatible chartplotter, radar or instrument.
This version uses a 0 degree tilted element to suit hull deadrise of 0 to 15 degrees, giving the advantages of a flush low-profile fitting without a hull protrusion. Built with Airmar broadband ceramic technology, the 235 kHz element reads depths up to 180 m (600 ft) with a 12 degree beamwidth, and the operating frequency helps prevent interference with other onboard echosounders. The fast-response temperature sensor is accurate to +/- 0.5 C, and the retractable plastic housing incorporates a self-closing valve that minimises water flow into the boat when the insert is removed for maintenance.
PRODUCT DETAILS
- Smart thru-hull sensor delivering depth and water temperature to your NMEA 2000 network
- Tilted-element broadband ceramic design suits hull deadrise of 0 to 15 degrees
- 235 kHz frequency helps prevent mutual interference with other onboard echosounders
- Reads depths up to 180 m (600 ft) with a 12 degree beamwidth
- Low-profile housing gives the benefit of a fairing block without a hull protrusion
- Fast-response temperature sensor accurate to +/- 0.5 C
- Retractable plastic housing with self-closing water valve

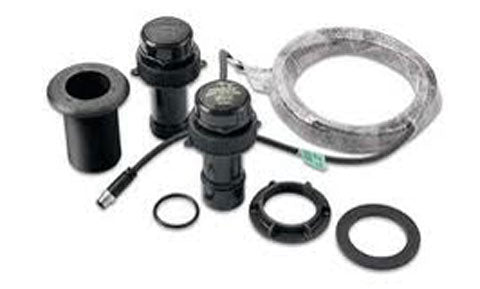

- DT800 plastic tilted-element thru-hull smart sensor
- Thru-hull housing with self-closing water valve
- 6 m (20 ft) NMEA 2000 DeviceNet cable
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Sensor
| Measured data | Depth and water temperature |
| Operating frequency | 235 kHz |
| RMS power | 100 W |
| Beamwidth | 12 degrees |
| Element | Tilted element, broadband ceramic |
| Minimum depth range | 0.5 m (1.6 ft) |
| Maximum depth range | Up to 180 m (600 ft) |
| Data update rate | 1 per second |
| Temperature sensor range | -10 C to 40 C (14 F to 104 F) |
| Temperature sensor accuracy | +/- 0.5 C (+/- 1.8 F) |
Connectivity
| Interface | NMEA 2000 |
| NMEA 2000 LEN | 4 |
| Cable length | 6 m (20 ft) DeviceNet |
Mounting
| Mounting type | Plastic tilted-element thru-hull with self-closing water valve |
| Hull deadrise | 0 to 15 degrees (0 degree tilted element) |
Physical
| Housing material | Plastic |
| Acoustic window | Urethane |
| Housing diameter | 75 mm (2.94 in) |
| Housing length | 125 mm (4.92 in) |
| Weight | 0.9 kg (2.0 lb) |
Electrical
| Supply voltage | 9 VDC to 16 VDC (NMEA 2000) |
| Supply current | 200 mA (NMEA 2000) |
| Pressure rating | 3 m (10 ft) |
General
| Standards | CE; complies to IEC 60945 |
