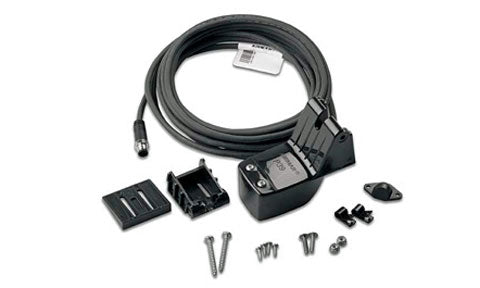

Garmin Airmar P39 NMEA2000 Transom Mount Depth Speed and Temperature Smart Sensor
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin Airmar P39 is a plastic transom-mount smart sensor that feeds depth, speed and water temperature directly onto a NMEA 2000 network. As a digital triducer it broadcasts clean readings to networked Garmin chartplotters and instruments, combining three measurements in one compact transom fitting.
This NMEA 2000 version is rated at 100 W, operates at 235 kHz with an 11-degree beam and reads to a maximum depth of 500 ft. It mounts on transoms with a deadrise of 0 to 20 degrees and ships with a 20 ft cable. The sensor is also known by its Airmar P39 designation.
The kit includes installation instructions; follow them carefully to avoid damaging your boat.
PRODUCT DETAILS
- Depth, speed and temperature over a NMEA 2000 network
- Digital smart sensor based on the Airmar P39
- 100 W at 235 kHz with an 11-degree beam
- Depth readings to 500 ft
- Transom mount for deadrise angles of 0 to 20 degrees
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Model | Airmar P39 Smart Sensor (NMEA 2000) |
| Mounting type | Transom mount |
| Functions | Depth, speed, temperature |
| Sensor type | Digital smart sensor (depth/speed/temperature output, no sonar display) |
| Housing material | Plastic |
Sonar
| Operating frequency | 235 kHz |
| Power | 100 W |
| Beamwidth (-3 dB) | 11 degrees |
| Maximum depth | 500 ft |
Physical
| Output protocol | NMEA 2000 |
| Cable length | 20 ft |
| Supported transom angle | 0 to 20 degrees |
Compatibility
| Compatible displays | Outputs digital depth, speed and temperature over a NMEA 2000 network to compatible Garmin chartplotters and marine instruments. |
