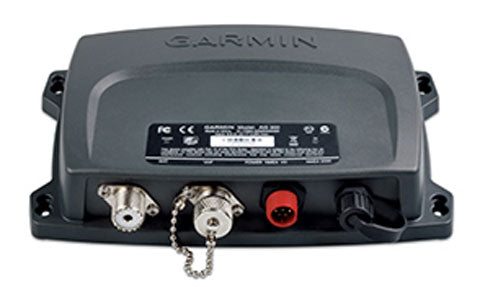

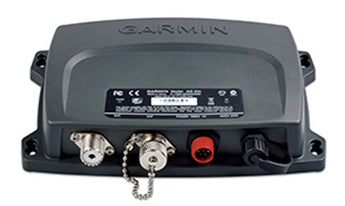

Garmin AIS 300 Black Box AIS Receiver with Built In VHF Antenna Splitter
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin AIS 300 is a black-box Automatic Identification System (AIS) Class B receiver that improves situational awareness by displaying nearby AIS-equipped vessels on a connected Garmin chartplotter. It receives both Class A and Class B AIS targets, helping you identify and track surrounding traffic and reduce the risk of collision in busy or low-visibility conditions.
Designed for concealed installation on a bulkhead below deck, the AIS 300 connects to a chartplotter over a NMEA 2000 network or NMEA 0183. It receives AIS information through a marine VHF antenna and can share a single antenna with an onboard VHF radio using the included RF interconnect cable, simplifying installation. The IPX7-rated housing withstands the marine environment.
PRODUCT DETAILS
- Black-box AIS Class B receiver displays nearby vessels on a Garmin chartplotter
- Receives both Class A and Class B AIS targets for improved situational awareness
- Shares a single VHF antenna with a VHF radio using the included RF interconnect cable
- NMEA 2000 and NMEA 0183 connectivity
- Below-deck bulkhead installation
- Low 2.5 W power draw
- IPX7 water-rated housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
AIS
| AIS class | Class B receiver (receives Class A and Class B targets) |
Connectivity
| NMEA interfaces | NMEA 2000 and NMEA 0183 |
| Antenna connector | PL259 (50 ohms) |
| VHF antenna sharing | Shares one VHF antenna with a VHF radio via included RF interconnect cable |
| NMEA 2000 LEN | 2 |
Physical
| Dimensions (W x H x D) | 207 x 140.6 x 45.7 mm (8.16 x 5.53 x 1.80 in.) |
| Weight | 670 g (1 lb. 7.6 oz.) |
| Compass-safe distance | 40 cm (15 3/4 in.) |
Electrical
| Power source | 9.6 to 31.2 Vdc (12 or 24 Vdc boat battery) |
| Power usage | 2.5 W max |
| Fuse | 5 A fast-acting |
Environmental
| Temperature range | -20 to 70°C (-4 to 158°F) |
| Water rating | IEC 60529 IPX7 |
