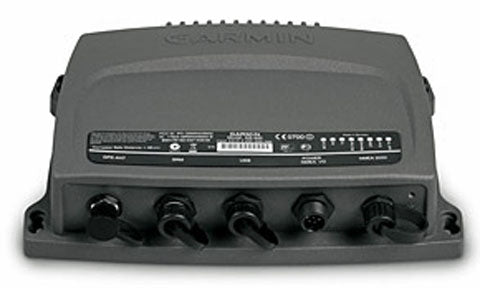

Garmin AIS 600 Black Box AIS Transceiver with Built In VHF Antenna Splitter
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin AIS 600 is a black-box Automatic Identification System (AIS) Class B transceiver that both transmits your vessel position and receives nearby AIS targets, displaying them on a connected Garmin chartplotter. Transmitting your own AIS position makes your boat visible to other AIS-equipped vessels, while receiving Class A and Class B targets improves situational awareness and helps avoid collisions. The unit must be programmed with a valid MMSI by an authorised installer before it will transmit.
The included GA 38 GPS antenna supplies the position data required for transmission, and a built-in antenna splitter lets the AIS 600 share a single VHF antenna with an onboard VHF radio. It connects to a chartplotter over a NMEA 2000 network or NMEA 0183, mounts on a bulkhead below deck, and carries an IPX7 water rating for the marine environment.
PRODUCT DETAILS
- Black-box AIS Class B transceiver transmits and receives AIS data
- Makes your vessel visible to other AIS-equipped boats once your MMSI is programmed
- Built-in VHF antenna splitter to share a single antenna with a VHF radio
- Included GA 38 GPS antenna for position reporting
- NMEA 2000 and NMEA 0183 connectivity for display on a Garmin chartplotter
- Below-deck bulkhead installation
- IPX7 water-rated housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
AIS
| AIS class | Class B transceiver (transmits and receives) |
Connectivity
| NMEA interfaces | NMEA 2000 and NMEA 0183 |
| VHF antenna connector | SO-239 (50 ohms) |
| Max antenna gain | 9 dBi |
| VHF antenna sharing | Built-in splitter; shares one VHF antenna with a VHF radio |
| NMEA 2000 LEN | 2 |
GPS
| GPS antenna | Included GA 38 GPS antenna (required for transmission) |
Physical
| Dimensions (W x H x D) | 248 x 180 x 64 mm (9.75 x 7.09 x 2.5 in.) |
| Weight | 1.895 kg (4.177 lb.) |
| Compass-safe distance | 40 cm (15 3/4 in.) |
Electrical
| Power source | 9.6 to 31.2 Vdc (12 or 24 Vdc boat battery) |
| Power usage | 20 W max |
| Fuse | 5 A fast-acting |
Environmental
| Temperature range | -20 to 60°C (-4 to 140°F) |
| Water rating | IEC 60529 IPX7 |
GA 38 GPS Antenna
| Dimensions | 91.6 mm dia. x 49.5 mm H (3.6 x 1.95 in.) |
| Weight | 201 g (7.1 oz.) |
| Water rating | IEC 60529 IPX7 |
