Garmin B75L CHIRP 0 Degree Tilt Depth and Temperature Transducer 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

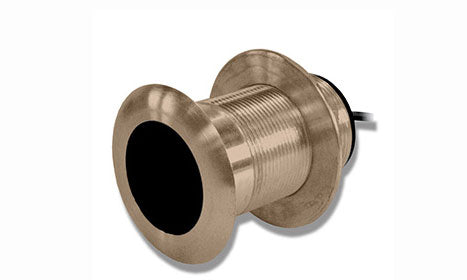

The Garmin B75L is a bronze thru-hull transducer that brings low-frequency CHIRP performance to a compatible Garmin sonar system. The flush-mounted housing protrudes less than a quarter of an inch outside the hull and can sit on trailer rollers or bunks without damage, while the tilted element inside aims the sound beam vertically and removes the need for a fairing block. Built-in depth and water-temperature sensing comes as standard.
This no-tilt (0°) model is matched to hull deadrise angles of 0-7° and gives a wide beam and strong returns for deeper water searching. An excellent choice for fibreglass and wood hulls, it connects to CHIRP-capable Garmin chartplotters, combos and sonar modules. The transducer is supplied with installation instructions, which should be followed carefully to avoid damaging your boat.
PRODUCT DETAILS
- Low CHIRP bronze thru-hull transducer operating at 40-75 kHz
- 300 W (RMS) transmit power for a wide beam and strong returns for deeper water searching
- Beamwidth of 32° / 21° (-3 dB)
- Maximum depth of 1100 ft (335 m)
- 0 degree tilted element matched to 0-7° hull deadrise; no fairing block required
- Built-in water-temperature sensor
- 8-pin Garmin connector with a 39 ft (11.9 m) cable
- Compatible with CHIRP-capable Garmin systems including the GSD 26 module
- Garmin B75L bronze thru-hull transducer (0 degree tilt)
- Anti-rotation hardware / mounting bolts
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Sonar
| Sonar Type | Low CHIRP |
| Operating Frequency | 40-75 kHz |
| CHIRP Bandwidth | 40-75 kHz (Low band) |
| Transmit Power | 300 W (RMS) |
| Maximum Depth | 1100 ft (335 m) |
Beam
| Beamwidth (-3 dB) | 32° / 21° (-3 dB) |
Mounting
| Mounting Style | Bronze thru-hull, flush-mounted |
| Element Tilt | 0 degree tilted element |
| Supported Deadrise | 0-7° |
Physical
| Housing Material | Bronze |
| Built-in Temperature Sensor | Yes |
Connectivity
| Connector | 8-pin Garmin |
| Cable Length | 39 ft (11.9 m) |
| Data Provided | Depth and temperature |
Compatibility
| Compatible Systems | Compatible with Garmin GSD 26 CHIRP professional sonar module; also compatible with GPSMAP 7600xsv series (with GSD 25), GPSMAP 5x7/7x1/8x0/10x0 xs series, ECHOMAP CHIRP DV/SV series and STRIKER DV/SV series (adapter cable may be required). Requires a CHIRP-capable Garmin chartplotter, combo or sonar module. |
General
| Series | B75 Series |
| Brand | Garmin (Airmar) |
