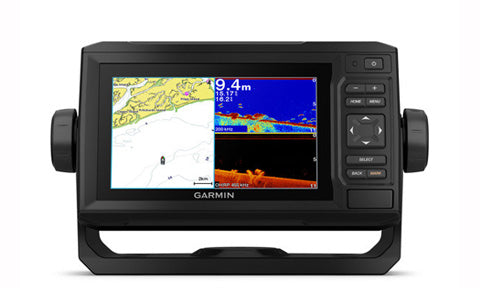

Garmin Echomap Plus 65cv Chartplotter No Transducer Bluechart G2 UK
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin ECHOMAP Plus 65cv is a 6 inch keyed chartplotter and fishfinder combining CHIRP traditional sonar and Garmin ClearVu scanning sonar with a bright, sunlight readable WVGA display. It is supplied with UK and Ireland BlueChart g2 cartography preloaded and includes Garmin Quickdraw Contours mapping so you can create personalised maps with 0.3 m (1 ft) contours.
Built in Wi-Fi pairs with the ActiveCaptain app for smart notifications, chart updates and OneChart downloads, while NMEA 0183 supports basic instrument connections. This unit is supplied without a transducer, allowing you to fit the transducer best suited to your boat.
PRODUCT DETAILS
- 6 inch sunlight readable WVGA display
- CHIRP traditional sonar plus Garmin ClearVu scanning sonar
- Preloaded UK and Ireland BlueChart g2 cartography
- Garmin Quickdraw Contours mapping creates custom maps
- Built in Wi-Fi with ActiveCaptain app support
- Supplied without transducer; IPX7 waterproof housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 13.7 x 7.7 cm (5.4 x 3.1 in.), 6.2 in. diagonal |
| Display resolution | WVGA, 800 x 480 pixels |
| Display type | Colour, keypad controlled |
GPS/GNSS
| Preloaded charts | UK and Ireland BlueChart g2 |
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Sonar
| Built-in sonar | CHIRP traditional and Garmin ClearVu scanning sonar |
| Sonar frequencies | Traditional 50, 77, 83, 200 kHz; CHIRP ClearVu 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz (transducer dependent) |
Connectivity
| Networking | NMEA 0183, Wi-Fi (ActiveCaptain) |
| Wireless frequency | 2.4 GHz @ 17.2 dBm nominal |
| Memory card | 1 microSD card slot; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 21.8 x 13.0 x 6.2 cm (8.6 x 5.1 x 2.6 in.) |
| Weight | 0.75 kg (1.6 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 65 cm (25.6 in.) |
Electrical
| Input voltage | 9 to 18 Vdc |
| Max. power draw | 12 W |
| Fuse | 3 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
