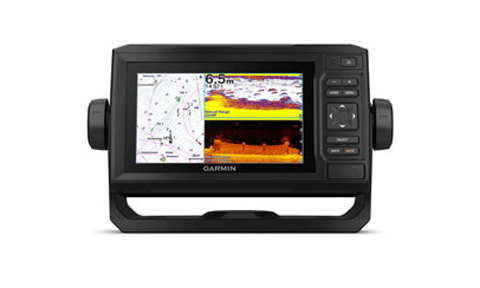

Garmin ECHOMAP UHD 65cv Chartplotter No Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin ECHOMAP UHD 65cv is a 6 inch keyed chartplotter and fishfinder featuring Ultra High-Definition Garmin ClearVu scanning sonar alongside CHIRP traditional sonar, delivering exceptionally clear images of structure and fish below the boat. The bright, sunlight readable WVGA display and built in Garmin Quickdraw Contours mapping let you create personalised maps with 0.3 m (1 ft) contours.
Built in Wi-Fi pairs with the ActiveCaptain app for smart notifications, chart updates and OneChart downloads, while NMEA 0183 supports basic instrument connections. This unit is supplied without a transducer, so you can choose the right one for your boat.
PRODUCT DETAILS
- 6 inch sunlight readable WVGA display
- Ultra High-Definition Garmin ClearVu scanning sonar
- CHIRP traditional sonar for clear target separation
- Garmin Quickdraw Contours mapping creates custom maps
- Built in Wi-Fi with ActiveCaptain app support
- Supplied without transducer; IPX7 waterproof housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 13.7 x 7.7 cm (5.4 x 3.1 in.), 6.2 in. diagonal |
| Display resolution | WVGA, 800 x 480 pixels |
| Display type | Colour, keypad controlled |
GPS/GNSS
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Sonar
| Built-in sonar | CHIRP traditional and Ultra High-Definition Garmin ClearVu scanning sonar |
| Sonar frequencies | Traditional 50, 77, 83, 200 kHz; CHIRP ClearVu 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz (transducer dependent) |
Connectivity
| Networking | NMEA 0183, Wi-Fi (ActiveCaptain) |
| Wireless frequency | 2.4 GHz @ 17.2 dBm maximum |
| Memory card | 1 microSD card slot; 32 GB max. card size |
Physical
| Dimensions on cradle and bail mount (W x H x D) | 21.8 x 13.0 x 6.2 cm (8.6 x 5.1 x 2.6 in.) |
| Weight | 0.75 kg (1.6 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 65 cm (25.6 in.) |
Electrical
| Input voltage | 9 to 18 Vdc |
| Max. power draw | 12 W |
| Fuse | 3 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
