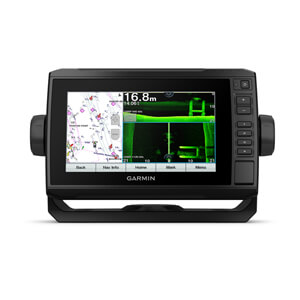

Garmin ECHOMAP UHD 95sv Chartplotter No Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin ECHOMAP UHD 95sv is the largest of the ECHOMAP UHD keyed range, putting a generous 9 inch sunlight readable WVGA display at the helm with CHIRP traditional plus Ultra High-Definition Garmin ClearVu and SideVu scanning sonar for crisp, detailed views below and to the sides of your boat. Built in Garmin Quickdraw Contours mapping lets you create personalised maps with 0.3 m (1 ft) contours.
Built in Wi-Fi connects to the ActiveCaptain app, while NMEA 2000 and NMEA 0183 let you integrate sensors, autopilot and other equipment. This unit is supplied without a transducer, so you can fit the SideVu capable transducer best suited to your boat.
PRODUCT DETAILS
- 9 inch sunlight readable WVGA display, 800 x 400 resolution
- Ultra High-Definition Garmin ClearVu and SideVu scanning sonar
- CHIRP traditional sonar for clear target separation
- Garmin Quickdraw Contours mapping creates custom maps
- Built in Wi-Fi plus NMEA 2000 and NMEA 0183 connectivity
- Supplied without transducer; IPX7 waterproof housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 19.9 x 11.3 cm (7.8 x 4.8 in.), 9 in. diagonal |
| Display resolution | WVGA, 800 x 400 pixels |
| Display type | Colour, keypad controlled |
GPS/GNSS
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Sonar
| Built-in sonar | CHIRP traditional, Ultra High-Definition Garmin ClearVu and SideVu scanning sonar |
| Sonar frequencies | Traditional 50, 77, 83, 200 kHz; CHIRP ClearVu and SideVu 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz (transducer dependent) |
Connectivity
| Networking | NMEA 2000, NMEA 0183, Wi-Fi (ActiveCaptain) |
| Wireless frequency | 2.4 GHz @ 18.5 dBm maximum |
| NMEA 2000 LEN | 1 @ 9 Vdc (75 mA max.) |
| Memory card | 1 microSD card slot; 32 GB max. card size |
Physical
| Dimensions on cradle and bail mount (W x H x D) | 30.3 x 17.8 x 6.5 cm (11.9 x 7.0 x 2.6 in.) |
| Weight | 1 kg (2.3 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 65 cm (25.6 in.) |
Electrical
| Input voltage | 9 to 18 Vdc |
| Max. power draw | 18 W |
| Fuse | 3 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
