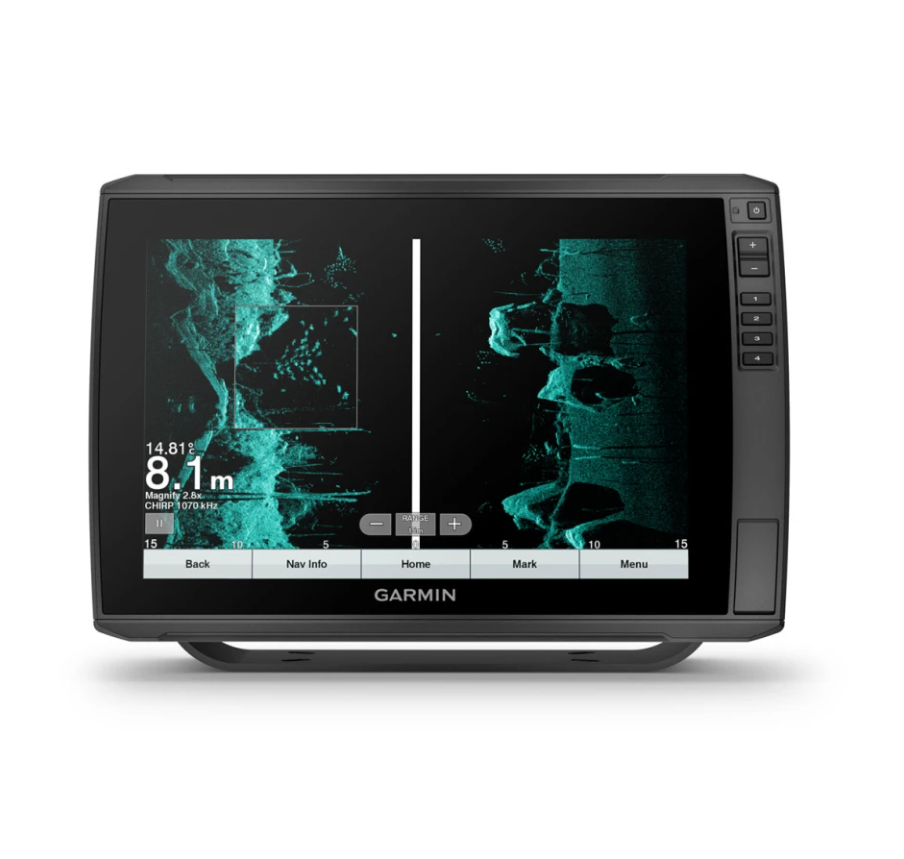

Garmin ECHOMAP Ultra 122sv with GT54UHD-TM Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The ECHOMAP Ultra 122sv is a premium 12 inch chartplotter and fishfinder combo with a bright, sunlight-readable WXGA touchscreen and keyed assist. This bundle includes the GT54UHD-TM transom transducer, delivering Garmin CHIRP traditional sonar plus the highest-resolution Ultra High-Definition ClearVu and SideVu scanning sonars for exceptional detail of structure and fish.
A preloaded worldwide basemap works with Garmin Quickdraw Contours mapping and accepts BlueChart g3, BlueChart g3 Vision and Garmin Navionics+ charts. Twin microSD slots, two Garmin Marine Network ports, NMEA 2000 and NMEA 0183 connectivity and built-in Wi-Fi with the ActiveCaptain app let you share sonar, charts and data across compatible displays, and the unit also supports Panoptix, Panoptix LiveScope and GCV black box sonar.
PRODUCT DETAILS
- Bright 12 inch WXGA sunlight-readable touchscreen with keyed assist
- Includes GT54UHD-TM transom transducer
- CHIRP traditional plus high-resolution UHD ClearVu and SideVu sonars
- Preloaded worldwide basemap; BlueChart g3, g3 Vision and Navionics+ compatible
- 600 W RMS sonar; Panoptix, LiveScope and GCV black box support
- Garmin Marine Network, NMEA 2000 and built-in Wi-Fi
No exploded diagram available for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| GPS | Internal 10 Hz GPS (or external over NMEA 2000) |
| Preloaded cartography | Worldwide basemap; compatible with BlueChart g3 and BlueChart g3 Vision and Garmin Navionics+ charts |
| Mapping software | Garmin Quickdraw Contours (1 ft / 30 cm contours) |
| Memory card slots | 2 microSD card slots (32 GB max each) |
Display
| Display size | 12.1 in diagonal (30.7 cm); 26.1 x 16.3 cm |
| Display resolution | WXGA, 1280 x 800 pixels |
| Display type | Sunlight-readable colour touchscreen with keyed assist |
Sonar
| Included transducer | GT54UHD-TM transom mount |
| Built-in sonar | Garmin CHIRP traditional plus Ultra High-Definition ClearVu and SideVu scanning sonars |
| CHIRP traditional frequencies | High-Wide 150 to 240 kHz; dual-frequency 50/200 kHz and dual-beam 77/200 kHz capable |
| UHD ClearVu / SideVu frequencies | UHD ClearVu 800 kHz; CHIRP ClearVu 455 kHz; UHD SideVu 1,200 kHz; CHIRP SideVu 455 kHz |
| Transmit power | 600 W (RMS) / 4,000 W (peak-to-peak) |
| Maximum depth | 701 m (2,300 ft) freshwater / 335 m (1,100 ft) saltwater at 77 kHz (transducer dependent) |
| Sonar support | Panoptix and Panoptix LiveScope, plus GCV black box sonar (transducer sold separately) |
Compatibility
| NMEA 2000 | Yes |
| NMEA 0183 | Yes (1 input, 1 output) |
| Wi-Fi | Yes, ActiveCaptain app connectivity |
| Garmin Marine Network | 2 ports (large connector) |
Physical
| Dimensions (W x H x D) | 34.1 x 22.9 x 9.8 cm (13.4 x 9.0 x 3.9 in) |
| Weight | 2.5 kg (5.5 lb) unit only |
| Waterproof rating | IPX7 |
| Power input | 9 to 18 Vdc |
| Mount | Bail or flush mount |
