Garmin
Garmin Force Trolling Motor 57 Inch
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

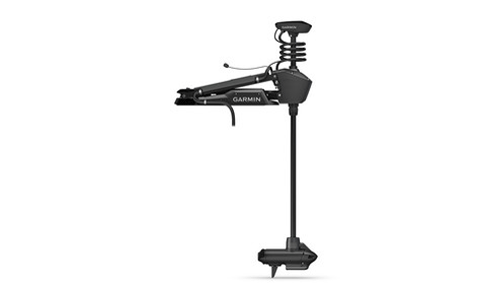

The Garmin Force trolling motor brings serious power and tight integration to the front of your boat. A brushless motor produces up to 100 lb (445 N) of peak thrust on a 36 V system while running quietly and efficiently, helping you cover water without spooking fish. The longer 57 in. fibreglass shaft is well suited to boats with a taller bow or to anglers who fish choppier water, keeping the propeller submerged for consistent control.
Built-in GPS autopilot lets you set an anchor lock to hold position automatically, lock a heading, or follow routes and tracks created on a paired Garmin chartplotter. Both the foot pedal and the handheld remote are completely wireless, so there are no control cables cluttering the deck. The motor accepts a 24 V or 36 V battery supply, drawing up to 60 A continuous, and the propeller drive motor carries an IPX8 submersion rating for dependable freshwater service.
PRODUCT DETAILS
- Up to 100 lb (445 N) of peak thrust from a quiet brushless motor
- Longer 57 in. fibreglass shaft for taller bows and rougher water
- Runs on a 24 V or 36 V battery system (36 V for full thrust)
- GPS anchor lock holds your position automatically, like a virtual anchor
- Heading hold plus route and track following keep you on the fish
- Wireless foot pedal and handheld remote, both cable-free
- Pairs with compatible Garmin chartplotters and the ActiveCaptain app
- Aluminium construction with an IPX8 sealed propeller drive motor
- Force trolling motor (57 in. shaft) with mount
- Wireless foot pedal
- Handheld remote control
- Power cable
- Stabiliser bar
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Motor
| Peak Thrust | 100 lbf (445 N) at 36 Vdc; approx. 80 lbf (355 N) at 24 Vdc |
| Motor Type | Brushless, variable-speed propeller drive |
| Shaft Length | 57 in. (1.45 m) |
| Shaft Material | Fibreglass |
Electrical
| Rated Input Voltage | 24 / 36 Vdc capable (operating range 20 to 45 Vdc) |
| Input Amperage | 60 A continuous |
| Circuit Breaker | 42 Vdc or greater, suitable for 60 A continuous (not included; do not exceed 90 A) |
| Max Power Usage | 2160 W at 36 Vdc, 60 A |
Control
| Control Methods | Wireless foot pedal, handheld remote, compatible Garmin chartplotter and ActiveCaptain app |
| Autopilot Features | GPS anchor lock (position hold), heading hold, route and track following |
| Wireless Connectivity | Bluetooth 2.4 GHz; Wi-Fi 802.11 b/g/n |
Physical
| Weight (motor, mount, cables) | 31.75 kg (70 lb) |
| Mount and Housing Material | Aluminium mount and motor housing; plastic shaft cap, display panel and side panels |
| Water Rating | Propeller drive motor IPX8; steering and display housings IPX7; shaft cap IPX5 |
General
| Mount Type | Bow-mount, freshwater |
| Operating Temperature | -5 to 40 C (32 to 104 F) |
