Garmin

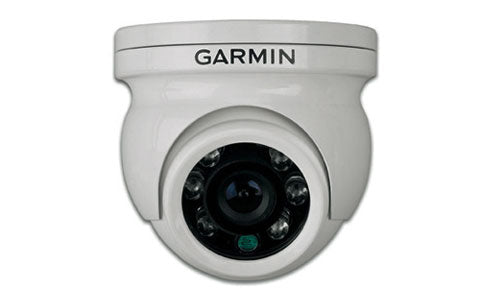

Garmin GC10 Marine Camera NTSC Standard Image RED sticker
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GC 10 marine camera lets you keep an eye on hard-to-see areas of your vessel, such as the engine room, cockpit or the area astern when manoeuvring. It uses a 1/3 inch Sony Super HAD CCD sensor and outputs an analogue composite video signal that connects directly to the video input of a compatible Garmin chartplotter or marine monitor. This version (red sticker) produces a standard, non-reversed NTSC image.
Built for the marine environment, the GC 10 has a waterproof IP66 housing rated from -20 to 60 degrees C and a rotatable mount that is adjusted by loosening a single set screw. Power is a regulated 12 Vdc supply, and an integrated LED helps in low light. Do not watch the video feed while navigating the vessel.
PRODUCT DETAILS
- 1/3 inch (8.5 mm) Sony Super HAD CCD image sensor
- Standard (non-reversed) NTSC composite video output
- 480 TV line resolution for clear monitoring
- Waterproof IP66 housing for exposed marine installations
- Rotatable mount adjusted with a single set screw
- Integrated LED for low-light viewing
- Connects to the video input of a compatible Garmin chartplotter or monitor
- Identified by the red sticker
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Camera
| Image sensor | 1/3 in. (8.5 mm) Sony Super HAD CCD |
| Effective pixels | 768 x 494 (NTSC) |
| Scanning system | 2:1 interlaced, 525 lines (NTSC) |
| Synchronisation system | Internal |
| Resolution | 480 TV lines |
Video
| Video output | VBS, 1.0 V peak-to-peak, composite, 75 ohms |
| Image orientation | Standard (non-reversed) |
| Signal-to-noise ratio | More than 48 dB (AGC off) |
Electrical
| Input voltage | 12 Vdc, plus/minus 2 V, regulated power supply |
| Power consumption | 80 mA at 12 Vdc (120 mA max with LED on) |
Physical
| Dimensions | 60 mm diameter x 57 mm height (2 3/8 x 2 1/4 in.) |
| Weight | 320 g (11.3 oz.) |
| Compass-safe distance | 155 mm (6 1/8 in.) |
Environmental
| Operating temperature | -20 to 60 C (-4 to 140 F) |
| Waterproof rating | IP66 |
