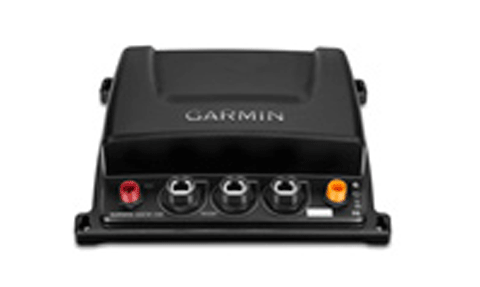

Garmin GCV Scanning Sonar Module no Transducer
£0.00
/
Tax included.
Shipping calculated at checkout.
010-01156-10
The Garmin GCV 10 is a networkable scanning sonar module that adds Garmin DownVu (ClearVu) and SideVu imaging to a compatible Garmin chartplotter system. This version is supplied as the module only, delivering 500 W RMS power at 455/800 kHz with DownVu depths of 230 m and SideVu ranges of 150 m. This is a legacy product.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GCV 10 is a networkable scanning sonar module that brings Garmin DownVu (ClearVu) and SideVu imaging to a compatible networked Garmin chartplotter, revealing structure, cover and the contour of the bottom beneath and to each side of the boat. Operating at 455/800 kHz with 500 W RMS of transmit power, it reaches DownVu depths of up to 230 m and SideVu ranges of up to 150 m depending on conditions. This version is supplied as the module only, for boats fitting a compatible Garmin DownVu/SideVu transducer separately. The module connects over the Garmin Marine Network and provides three network ports for sharing sonar across compatible chartplotters. Its housing is rated to IPX7 for service in the marine environment. This is a legacy product, superseded in the current range by the Ultra HD GCV 20.
PRODUCT DETAILS
- Networkable scanning sonar module delivering Garmin DownVu (ClearVu) and SideVu imaging
- Module-only supply for boats fitting a compatible Garmin DownVu/SideVu transducer separately
- 500 W RMS transmit power at 455/800 kHz
- Reaches DownVu depths of 230 m and SideVu ranges of 150 m
- Connects over the Garmin Marine Network with three network ports
- Rugged housing rated to IPX7
No exploded diagram available for this product.
Garmin GT50-THP Thru Hull Mount Pair 12 pin
Garmin GT41-THP Thru Hull Mount Pair 12 pin
Garmin GT50-TM TH Thru Hull Mount 12 pin
Garmin GT50M-TM Transom Mount Transducer 12 pin
Garmin GT40-TM Transom Mount Transducer 12pin
Garmin GT51M-TH Thru Hull Mount 12 pin
Garmin GT51M-TM Transom Mount Transducer 12 pin
Garmin GT41-TM Transom Mount Transducer 12 pin
Garmin GT50M-TM Transom Mount 12 pin
No spares or accessories listed for this product.
No compatible products found.
Sonar/Sensor
| Sonar Technology | Garmin DownVu (ClearVu) and SideVu scanning sonar |
| Frequency | 455 / 800 kHz (dependent on transducer) |
| Transmit Power (RMS) | 500 W |
| Maximum Depth | DownVu 230 m; SideVu 150 m (dependent on transducer and conditions) |
Connectivity
| Data Output | Garmin Marine Network (3 network ports) |
Electrical
| Power Input | 10 to 35 V |
| Power Usage | 10.5 W maximum |
Physical
| Dimensions (W x H x D) | 251 x 192 x 66 mm (9.9 x 7.6 x 2.6 in) |
| Weight | 845 g |
| Water Rating | IPX7 |
| Operating Temperature Range | -15 to 70 C (5 to 158 F) |
Compatibility
| Transducer | Module only; requires a compatible Garmin DownVu/SideVu transducer (e.g. GT30 series), supplied separately |
