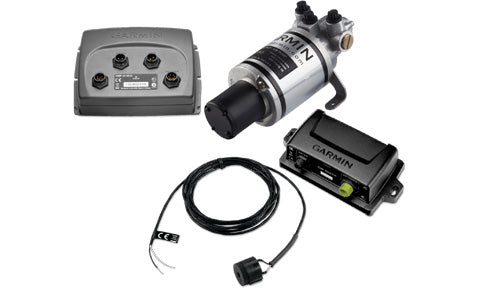

Garmin GHP Compact Reactor Hydraulic Autopilot System with 1L Pump and No Controller
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GHP Compact Reactor Hydraulic Autopilot System provides GPS-stabilised self-steering for boats with hydraulic steering. It combines a course computer unit with an internal heading sensor, an electronic control unit and a compact 1 litre electro-hydraulic pump, holding heading and following routes with smooth, reliable control.
This package does not include a dedicated helm control, so the autopilot is configured and operated through a compatible Garmin chartplotter on the same NMEA 2000 network. Setup is guided by the on-screen Dockside and Sea Trial wizards, and installation should be carried out by a qualified marine engineer.
PRODUCT DETAILS
- Complete GPS-stabilised hydraulic autopilot system
- Compact 1 litre electro-hydraulic pump included
- Course computer with internal heading and rate-of-turn sensor
- Controlled through a compatible Garmin chartplotter
- Holds heading and follows routes accurately
- Dockside and Sea Trial wizard setup
- NMEA 2000 connectivity
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Autopilot
| Autopilot type | GPS-stabilised marine autopilot (Reactor CCU course computer) |
| Drive type | Hydraulic (compact 1 L electro-hydraulic pump, included) |
| Helm control | No dedicated instrument supplied; control via a compatible Garmin chartplotter on the same NMEA 2000 network |
Sensor
| Heading sensor (CCU) | Internal solid-state attitude and rate-of-turn sensor; primary heading source |
| CCU dimensions (L x W x H) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| CCU weight | 200 g (7 oz.) |
| CCU water rating | IEC 60529 IPX7 |
Drive
| Pump type | Compact electro-hydraulic pump (included) |
| Pump dimensions (H x W x D) | 84.6 x 100.3 x 155.3 mm (3.3 x 4.0 x 6.1 in.) |
| Pump weight | 2.2 kg (5 lb.) |
| Pump hydraulic ports | Three 1/4 in. NPT ports |
| Pump peak current | Peak 34 A; engaged 5 to 10 A; standby under 1 A (from ECU) |
| ECU dimensions (W x H x D) | 168 x 117 x 51 mm (6.6 x 4.6 x 2 in.) |
| ECU weight | 680 g (24 oz.) |
Connectivity
| Network | NMEA 2000 |
| NMEA 2000 LEN | 4 (200 mA) |
Electrical
| ECU/pump supply voltage | 12 to 24 Vdc (ECU input 11.5 to 30 Vdc) |
| ECU fuse | 40 A, blade-type |
General
| Compatible steering | Hydraulic steering systems |
| Configuration | Dockside Wizard and Sea Trial Wizard via a compatible Garmin chartplotter |
