Garmin GHP Reactor 40 Hydraulic Autopilot Corepack with GHC 20 Display and SmartPump
£0.00
/
Tax included.
Shipping calculated at checkout.
010-00705-69
Reactor 40 Hydraulic autopilot built around the SmartPump v2, an integrated brushless pump with a built-in Shadow Drive valve. Supplied with the GHC 20 instrument for dedicated helm control and full NMEA 2000 navigation.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin Reactor 40 Hydraulic autopilot with SmartPump v2 is a complete GPS-stabilised steering system for boats with hydraulic helms. The Reactor 40 CCU is a solid-state course computer that senses heading, attitude and rate of turn to hold a course or follow a route accurately. The included SmartPump v2 combines a brushless electro-hydraulic pump and its control unit in one compact, quiet unit, with Intelligent Rudder Rate Technology that automatically matches steering speed to boat speed. It suits hydraulic cylinders from 4 to 24 cu in with a configurable flow up to 2.4 L per minute, and its built-in Shadow Drive valve lets you take the wheel at any time. The supplied GHC 20 colour instrument gives dedicated control at the helm, while NMEA 2000 connectivity ties the system into compatible Garmin chartplotters. Dockside and Sea Trial wizards tune performance to your boat.
PRODUCT DETAILS
- GPS-stabilised Reactor 40 autopilot for hydraulic steering
- Includes the Garmin SmartPump v2 with integrated brushless motor and control unit
- GHC 20 colour autopilot instrument supplied for dedicated helm control
- Intelligent Rudder Rate Technology adjusts steering response to boat speed
- Built-in Shadow Drive valve for instant manual takeover
- Suits hydraulic cylinders from 4 to 24 cu in with up to 2.4 L/min flow
- NMEA 2000 connectivity for chartplotter route and waypoint following

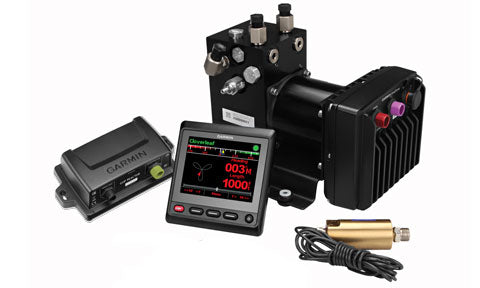

- Reactor 40 CCU (course computer unit)
- Garmin SmartPump v2 (integrated pump and control unit, with Shadow Drive valve)
- GHC 20 autopilot instrument with trim covers
- Audible alarm
- NMEA 2000 T-connectors, drop cables, power cable and terminators
- Mounting hardware and installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Autopilot
| Autopilot type | GPS-stabilised marine autopilot (Reactor 40 CCU course computer) |
| Drive type | Hydraulic via Garmin SmartPump v2 (integrated brushless pump and control unit, included) |
| Helm control | GHC 20 autopilot instrument (included) |
| Manual override | Shadow Drive valve (in the SmartPump) suspends autopilot when the helm is turned manually |
Sensor
| Heading sensor (CCU) | Internal solid-state attitude and rate-of-turn sensor; primary heading source |
| CCU dimensions (L x W x H) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| CCU weight | 200 g (7 oz.) |
| CCU water rating | IEC 60529 IPX7 |
| CCU cable length | 5 m (16 ft.) |
| Compass-safe mounting | Requires handheld-compass interference test; keep 60 cm (2 ft) from iron, magnets and high-current wiring |
Drive
| Pump | Garmin SmartPump v2, integrated brushless electro-hydraulic pump with built-in control unit |
| Compatible cylinder volume | 4 to 24 cu in (approx. 65 to 393 cc) |
| Pump flow rate | Configurable, 0 to 2.4 L per minute |
| Rudder rate technology | Intelligent Rudder Rate Technology (IRRT) adjusts steering speed with boat speed |
Connectivity
| Network | NMEA 2000 |
| NMEA 2000 LEN | 4 (200 mA) |
| NMEA 2000 input voltage | 9 to 16 Vdc |
| NMEA 0183 | Optional NMEA 0183 device support via helm control data cable |
Electrical
| Pump supply voltage | 10 to 30 Vdc (12 to 24 Vdc nominal), 40 A fuse |
Physical
| Included alarm | Audible alarm 23 x 25 mm, 68 g, 3 m cable |
General
| Compatible steering | Hydraulic steering systems |
| Configuration | Dockside Wizard and Sea Trial Wizard via helm control or compatible Garmin chartplotter |
No videos available for this product.
What is the SmartPump v2?
It is an integrated hydraulic drive that combines a brushless electro-hydraulic pump and its control unit in one unit, with a built-in Shadow Drive valve. It replaces the separate pump and ECU used by other Reactor 40 hydraulic systems.
What size steering cylinder does it suit?
The SmartPump v2 suits hydraulic steering cylinders from 4 to 24 cu in, with a configurable flow rate up to 2.4 L per minute.
What does Intelligent Rudder Rate Technology do?
IRRT automatically adjusts the steering speed based on boat speed, giving more responsiveness at low speed and more stability at higher speed.
What power supply is required?
The SmartPump connects to a 10 to 30 Vdc supply (12 to 24 Vdc nominal) through a 40 A fuse, and the NMEA 2000 network is powered from a 9 to 16 Vdc source.
Does this package include a control head?
Yes, the GHC 20 autopilot instrument is supplied for dedicated control at the helm. The CCU can also be controlled from a compatible Garmin chartplotter on the same NMEA 2000 network.
