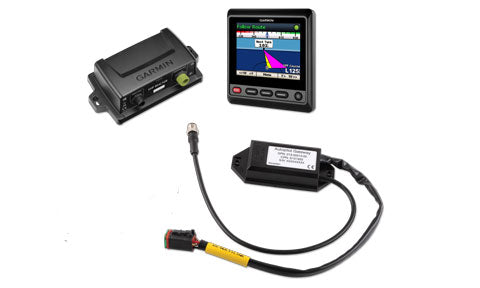

Garmin GHP Reactor 40 Steer By Wire Autopilot Corepack with GHC 20 Display for Volvo Penta
£0.00
/
Tax included.
Shipping calculated at checkout.
010-00705-89
Reactor 40 Steer-by-Wire autopilot configured for Volvo Penta electronic steering. The CCU commands the existing steering through its CAN bus, so there is no pump or drive to install. Supplied with the GHC 20 instrument.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin Reactor 40 Steer-by-Wire autopilot adds GPS-stabilised steering to boats fitted with Volvo Penta electronic steering. Instead of a hydraulic pump or mechanical drive, the Reactor 40 CCU connects to the steering controller through its CAN bus and commands the existing Volvo Penta steering directly, which keeps installation simple and clean. The CCU is a solid-state course computer that senses heading, attitude and rate of turn to hold a course or follow a route accurately. The supplied GHC 20 colour instrument provides dedicated control at the helm, while NMEA 2000 connectivity ties the system into compatible Garmin chartplotters for waypoint and route navigation. Dockside and Sea Trial wizards tune performance to your boat.
PRODUCT DETAILS
- GPS-stabilised Reactor 40 autopilot for Volvo Penta steer-by-wire boats
- Commands the existing Volvo Penta electronic steering, with no pump or drive to fit
- GHC 20 colour autopilot instrument supplied for dedicated helm control
- Solid-state CCU heading sensor with built-in attitude and rate-of-turn
- Simple installation: CCU connects to the steering CAN bus and NMEA 2000
- Dockside and Sea Trial wizards tune the system to your boat
- Reactor 40 CCU (course computer unit)
- Steering controller / CAN bus interface for Volvo Penta
- GHC 20 autopilot instrument with trim covers
- Audible alarm
- NMEA 2000 T-connectors, drop cables, power cable and terminators
- Mounting hardware and installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Autopilot
| Autopilot type | GPS-stabilised marine autopilot (Reactor 40 CCU course computer) |
| Drive type | Steer-by-wire; the CCU commands the boat existing electronic steering system, no pump or drive unit required |
| Helm control | GHC 20 autopilot instrument (included) |
Sensor
| Heading sensor (CCU) | Internal solid-state attitude and rate-of-turn sensor; primary heading source |
| CCU dimensions (L x W x H) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| CCU weight | 200 g (7 oz.) |
| CCU water rating | IEC 60529 IPX7 |
| CCU cable length | 3 m (9 ft.) |
| Compass-safe mounting | Requires handheld-compass interference test; keep 60 cm (2 ft) from iron, magnets and high-current wiring |
Drive
| Steering interface | CCU connects to the steering controller CAN bus via the supplied steering controller; requires a powered, terminated CAN bus |
| Components not required | No ECU, hydraulic pump or Shadow Drive sensor; steering is handled by the boat electronic steering |
| Steering platform | Configured for Volvo Penta electronic steering |
Connectivity
| Network | NMEA 2000 |
| NMEA 2000 LEN | 4 (200 mA) |
| NMEA 2000 input voltage | 9 to 16 Vdc |
| NMEA 0183 | Optional NMEA 0183 device support via helm control data cable |
Physical
| Included alarm | Audible alarm 23 x 25 mm, 68 g, 3 m cable |
General
| Compatible steering | Compatible electronic (steer-by-wire) steering systems |
| Configuration | Dockside Wizard and Sea Trial Wizard via helm control or compatible Garmin chartplotter |
No videos available for this product.
Does this autopilot need a pump or drive unit?
No. Steer-by-wire systems command the boat existing electronic steering directly, so there is no hydraulic pump, ECU or mechanical drive to install. The CCU connects to the steering controller through its CAN bus.
What kind of boat is this for?
It is for boats fitted with compatible electronic (steer-by-wire) steering. The steering controller CAN bus must be powered and properly terminated.
How long is the CCU cable?
The CCU cable is 3 m (9 ft.) and connects the CCU to the steering system. It must not be cut, but extension cables are available if needed.
Does this package include a control head?
Yes, the GHC 20 autopilot instrument is supplied for dedicated control at the helm. The CCU can also be controlled from a compatible Garmin chartplotter on the same NMEA 2000 network.
