Garmin GHP Reactor Steer By Wire Autopilot Corepack with GHC 20 Display
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

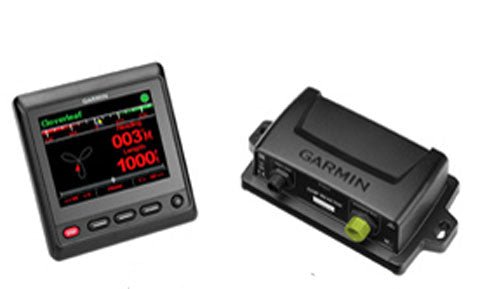

The Garmin GHP Reactor Steer By Wire Autopilot Corepack with GHC 20 provides GPS-stabilised self-steering for boats with compatible electronic (steer-by-wire) steering. It includes a course computer with an internal heading sensor and the GHC 20 colour instrument, and commands the boat existing electronic steering directly, so no hydraulic pump or mechanical drive is required.
The GHC 20 gives full push-button command at the helm, with heading hold, route following and steering patterns. Setup is guided by the on-screen Dockside and Sea Trial wizards, and installation should be carried out by a qualified marine engineer.
PRODUCT DETAILS
- GPS-stabilised steer-by-wire autopilot corepack
- Commands compatible electronic steering directly
- No hydraulic pump or mechanical drive unit required
- Course computer with internal heading and rate-of-turn sensor
- GHC 20 colour autopilot instrument included
- Dockside and Sea Trial wizard setup
- NMEA 2000 connectivity
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Autopilot
| Autopilot type | GPS-stabilised marine autopilot (Reactor CCU course computer) |
| Drive type | Steer-by-wire; the CCU commands the boat existing electronic steering system, no pump or drive unit required |
| Helm control | GHC 20 autopilot instrument (included) |
Sensor
| Heading sensor (CCU) | Internal solid-state attitude and rate-of-turn sensor; primary heading source |
| CCU dimensions (L x W x H) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| CCU weight | 200 g (7 oz.) |
| CCU water rating | IEC 60529 IPX7 |
| CCU cable length | 3 m (9 ft.) |
Drive
| Steering interface | CCU connects to the steering controller CAN bus via the supplied steering controller; requires a powered, terminated CAN bus |
| Components not required | No ECU, hydraulic pump or Shadow Drive sensor; steering is handled by the boat electronic steering |
| Steering platform | Standard steer-by-wire configuration |
Connectivity
| Network | NMEA 2000 |
| NMEA 2000 LEN | 4 (200 mA) |
| NMEA 0183 | Optional NMEA 0183 device support via helm control data cable |
Electrical
| NMEA 2000 input voltage | 9 to 16 Vdc |
Physical
| Included alarm | Audible alarm 23 x 25 mm, 68 g, 3 m cable |
General
| Compatible steering | Compatible electronic (steer-by-wire) steering systems |
| Configuration | Dockside Wizard and Sea Trial Wizard via helm control or compatible Garmin chartplotter |
