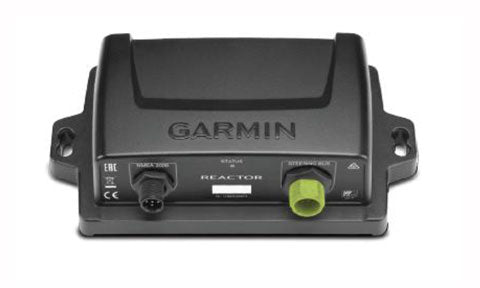

Garmin GHP Reactor Steer By Wire Course Computer Unit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GHP Reactor Steer By Wire Course Computer Unit (CCU) is the central sensor and steering interface of a steer-by-wire GHP Reactor autopilot. It contains a solid-state attitude and rate-of-turn sensor for the primary heading reference and commands the boat compatible electronic steering system directly, so no hydraulic pump or mechanical drive is required.
Sealed to IPX7, the CCU must be mounted away from sources of magnetic interference and tested with a handheld compass during installation. It serves as a core component of steer-by-wire GHP Reactor systems and as a service or replacement part.
PRODUCT DETAILS
- Steer-by-wire course computer unit for the GHP Reactor autopilot
- Built-in solid-state attitude and rate-of-turn sensor
- Commands compatible electronic steering directly
- No hydraulic pump or mechanical drive unit required
- Fully gasketed housing sealed to IPX7
- Mount away from magnetic interference (compass-safe siting)
- Core component and service replacement part
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Sensor
| Type | Steer-by-wire course computer unit (CCU) with internal solid-state attitude and rate-of-turn sensor; primary heading source |
| Steering interface | Commands a compatible electronic (steer-by-wire) steering system; no ECU, pump or Shadow Drive required |
| Compass-safe mounting | Requires handheld-compass interference test; keep 60 cm (2 ft) from iron, magnets and high-current wiring |
Physical
| Dimensions (L x W x H) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| Weight | 200 g (7 oz.) |
| Water rating | IEC 60529 IPX7 |
Connectivity
| Network | NMEA 2000 |
Electrical
| NMEA 2000 input voltage | 9 to 16 Vdc |
| NMEA 2000 LEN | 4 (200 mA) |
