Garmin

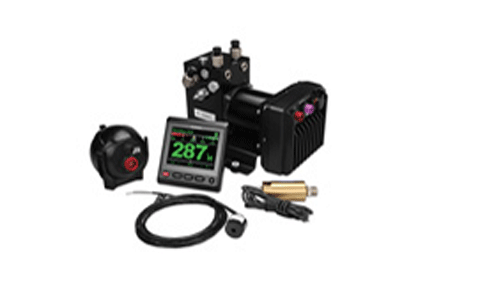

Garmin GHP20 SmartPump Autopilot System with GHC20
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GHP20 SmartPump Autopilot System with GHC 20 is a complete GPS-stabilised autopilot for boats with hydraulic steering. It combines a course computer with an internal heading sensor, the GHC 20 colour instrument and a Garmin SmartPump, an integrated brushless electro-hydraulic pump with its own control unit and Shadow Drive valve.
The SmartPump adjusts its flow to suit the boat and stands by automatically when the helm is turned by hand, while the GHC 20 gives full push-button command at the helm. Setup is guided by the on-screen Dockside and Sea Trial wizards, and installation should be carried out by a qualified marine engineer.
PRODUCT DETAILS
- Complete GPS-stabilised hydraulic autopilot system
- Garmin SmartPump with integrated control unit included
- Built-in Shadow Drive valve for automatic manual override
- GHC 20 colour autopilot instrument included
- Course computer with internal heading and rate-of-turn sensor
- Dockside and Sea Trial wizard setup
- NMEA 2000 connectivity
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Autopilot
| Autopilot type | GPS-stabilised marine autopilot (GHP Reactor CCU course computer) |
| Drive type | Hydraulic via Garmin SmartPump (integrated brushless pump and control unit, included) |
| Helm control | GHC 20 autopilot instrument (included) |
| Manual override | Shadow Drive valve (in the SmartPump) suspends autopilot when the helm is turned manually |
Sensor
| Heading sensor (CCU) | Internal solid-state attitude and rate-of-turn sensor; primary heading source |
| CCU dimensions (L x W x H) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| CCU weight | 200 g (7 oz.) |
| CCU water rating | IEC 60529 IPX7 |
Drive
| Pump | Garmin SmartPump, integrated brushless electro-hydraulic pump with built-in control unit |
| Pump dimensions (H x W x D) | 197 x 190 x 244 mm (7.75 x 7.48 x 9.61 in.) |
| Pump weight | 7.5 kg (16.5 lb.) |
Connectivity
| Network | NMEA 2000 |
| NMEA 2000 LEN | 4 (200 mA) |
Electrical
| Pump supply voltage | 11.5 to 30 Vdc, 40 A fuse |
General
| Compatible steering | Hydraulic steering systems |
| Configuration | Dockside Wizard and Sea Trial Wizard via helm control or compatible Garmin chartplotter |
