Garmin

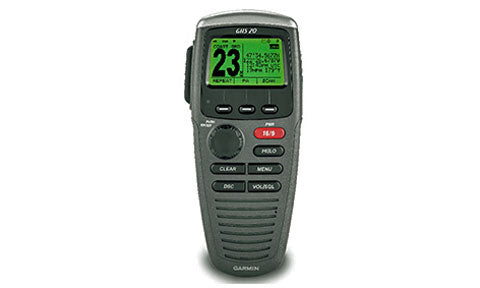

Garmin GHS 20i Wireless handset
£0.00
/
Tax included.
Shipping calculated at checkout.
010-11190-01
The Garmin GHS 20i is a wireless remote handset for the Garmin VHF 200i and 300i radios. Supplied with a GWH 20 receiver and charging cradle, it offers a 100 m range, intercom, and a rechargeable battery with up to 18 hours of life.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GHS 20i is a wireless remote handset that turns a Garmin VHF 200i or 300i radio into a system you can operate anywhere on board. Supplied with a GWH 20 wireless receiver and a charging cradle, it frees you from cable runs and lets you take full radio control with you around the deck, with a wireless range of up to 100 m depending on installation. Up to three handsets can be paired with a single receiver, and they offer walkie-talkie style intercom between handsets for crew communication.
The handset is powered by a rechargeable lithium-ion battery that delivers up to 18 hours of use and recharges in around four hours in the supplied cradle. A belt clip is included so the handset can be carried hands-free, and both the handset and the GWH 20 receiver are IPX7 water-rated for the marine environment. The existing radio may require a software update to work with the GHS 20i.
PRODUCT DETAILS
- Wireless remote handset that adds a portable second station to a Garmin VHF 200i or 300i radio
- Supplied with a GWH 20 wireless receiver and charging cradle
- Up to three handsets per receiver with walkie-talkie style intercom between handsets
- Wireless range up to 100 m (328 ft.) depending on installation
- Rechargeable lithium-ion battery with up to 18 hours of life and a 4-hour charge
- IPX7 water-rated handset and receiver
- GHS 20i wireless handset
- GWH 20 wireless receiver
- Charging cradle
- Belt clip
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Type | Wireless remote VHF handset with GWH 20 receiver |
| Compatibility | For use with Garmin VHF 200i or VHF 300i radios |
| Multi-handset support | Up to three GHS 20/20i handsets per GWH 20 receiver |
Connectivity
| Maximum transmission distance | 100 m (328 ft.), depending on installation location |
| GWH 20 cable length | 1.5 m (59 in.) |
Electrical
| Battery type | Rechargeable lithium-ion |
| Battery life | Up to 18 hours |
| Charge time | Up to 4 hours |
Physical
| Handset dimensions (H x W x D) | 16.1 x 7.2 x 4.28 cm (6.34 x 2.83 x 1.69 in.) |
| Handset weight | 250 g (8.82 oz.) |
| GWH 20 receiver dimensions | 7.1 x 13.5 x 2.6 cm (2.8 x 5.31 x 1.03 in.) |
| GWH 20 receiver weight | 188 g (6.63 oz.) |
| Compass-safe distance | 60 cm (23.6 in.) |
Environmental
| Operating temperature range | -15 to 70°C (5 to 158°F) |
| Charging temperature range | 0 to 45°C (32 to 113°F) |
| Water rating | IEC 60529 IPX7 |
No videos available for this product.
Which radios work with the GHS 20i?
The GHS 20i is designed for use with the Garmin VHF 200i and VHF 300i radios. The radio may need a software update to work with the handset, so check with your Garmin dealer.
What is the wireless range?
The GHS 20i communicates with its GWH 20 receiver at a maximum distance of around 100 m (328 ft.), depending on the installation location and surrounding materials.
How many handsets can I use?
Up to three GHS 20/20i handsets can be paired with a single GWH 20 receiver, and they offer intercom communication between handsets.
What is the battery life?
The rechargeable lithium-ion battery provides up to 18 hours of use and recharges in up to 4 hours in the supplied charging cradle.
Is the GHS 20i waterproof?
Yes. Both the handset and the GWH 20 receiver carry an IEC 60529 IPX7 rating, withstanding incidental immersion in 1 metre of water for up to 30 minutes.
