Garmin GMI 20 Instrument Bundle with Wired gWind and DST800
£0.00
/
Tax included.
Shipping calculated at checkout.
010-01248-10

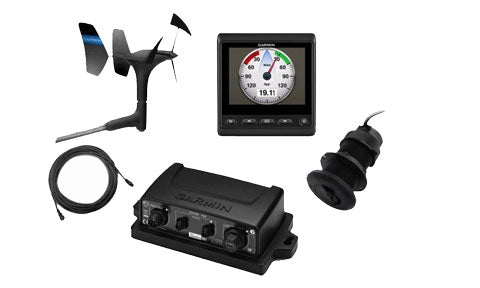

This Garmin bundle pairs the GMI 20 colour display with a wired gWind masthead transducer and a DST800 depth, speed and temperature sensor, giving you wind and water data in one package.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This Garmin instrument bundle gives a sailboat a full set of wind and water data around the GMI 20 colour display. The 4-inch bonded colour GMI 20 shows depth, speed, wind and over 100 marine parameters with a wide 170-degree viewing angle. A gWind Wired masthead transducer, using Garmin's twin-fin design with a 3-bladed propeller, delivers accurate true wind speed and a stable wind angle, and connects into the system through the included GND 10 bridge. A DST800 thru-hull smart transducer adds depth, boat speed and water temperature. Everything shares data over the NMEA 2000 network, so wind and water information appears together on the GMI 20.
PRODUCT DETAILS
- Complete wind-and-water bundle built around the GMI 20 colour display
- 4-inch bonded colour GMI 20 instrument with a 170-degree viewing angle
- gWind Wired masthead transducer with twin-fin design for accurate wind angle and speed
- DST800 thru-hull smart transducer for depth, speed and water temperature
- Includes a GND 10 bridge so the wired gWind integrates with NMEA 2000
- Wind speed measured from 0.9 to 90 knots
- GMI 20 colour marine instrument
- gWind Wired masthead transducer with mast cable
- GND 10 black box bridge
- DST800 thru-hull depth, speed and temperature transducer
- Mounting hardware, cabling and connectors
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Bundle Contents | GMI 20 colour display, gWind Wired masthead transducer (with GND 10) and DST800 depth/speed/temperature transducer |
Display
| Display | GMI 20: 4 in bonded colour LCD, 170-degree viewing angle |
Sensor
| Wind Transducer | gWind Wired masthead transducer, twin-fin with 3-bladed propeller; 0.9 to 90 kn; IPX6 |
| Depth/Speed Transducer | DST800 thru-hull smart sensor (depth, speed and temperature) |
Connectivity
| Network | NMEA 2000 (display and transducers networked; gWind via GND 10) |
No videos available for this product.
What is included in this GMI 20 bundle?
A GMI 20 colour display, a wired gWind masthead transducer (with a GND 10 bridge) and a DST800 thru-hull depth, speed and temperature transducer.
What data does this bundle provide?
Wind speed and angle from the gWind transducer, plus depth, boat speed and water temperature from the DST800, all shown on the GMI 20 colour display.
Is the wind transducer wired or wireless?
Wired. The gWind masthead transducer connects through the included GND 10 bridge into the NMEA 2000 network.
What wind speed range does the gWind transducer measure?
From 0.9 to 90 knots (0.5 to 50 m/s).
