Garmin GPS19x 10Hz 32 Channel GPS Antenna with NMEA2000
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPS 19x is a high-sensitivity GPS antenna that supplies precise position data to a compatible chartplotter over the NMEA 2000 network. Its receiver tracks GPS and GLONASS satellites simultaneously and supports WAAS and EGNOS corrections for improved accuracy, while a fast 10 Hz update rate keeps track plots and velocity readings smooth and detailed.
Connection is plug-and-play using the supplied NMEA 2000 T-connector and 6 m drop cable, and the antenna presents a low load of just LEN 2, drawing around 40 mA. Housed in a fully gasketed plastic-alloy case rated to IPX7, the GPS 19x mounts on a surface, a pole or under a fibreglass deck using the included brackets, and configuration options such as WAAS/EGNOS, GLONASS and a speed filter are accessed from a connected Garmin device.
PRODUCT DETAILS
- High-sensitivity GPS and GLONASS receiver for reliable positioning
- WAAS and EGNOS support for improved position accuracy
- Fast 10 Hz position update rate for smooth, detailed track data
- Plug-and-play NMEA 2000 connection with included T-connector and 6 m drop cable
- Low NMEA 2000 load of LEN 2 (40 mA draw at 12 Vdc)
- Surface, pole and under-deck mounting options with included brackets
- Fully gasketed plastic-alloy housing rated to IPX7

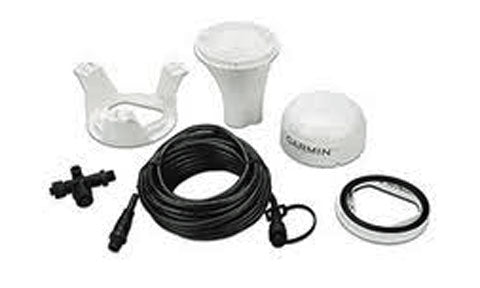

- GPS 19x antenna (NMEA 2000) with attached cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable, 6 m (20 ft.)
- Surface-mount bracket
- Pole-mount adapter
- Under-deck mounting bracket
- Mounting hardware
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
GNSS
| Satellite systems | GPS and GLONASS (simultaneous) |
| Satellite-based augmentation | WAAS and EGNOS |
| Receiver sensitivity | -185 dBW minimum |
| Update rate | 1, 5 or 10 Hz (selectable) |
Connectivity
| Interface | NMEA 2000 (plug-and-play, included T-connector and drop cable) |
| NMEA 2000 LEN | 2 (100 mA at 9 Vdc) |
| NMEA 2000 draw | 40 mA at 12 Vdc |
Electrical
| Power input source | 9 to 16 Vdc, unregulated |
| Input current | 40 mA at 12 Vdc |
Physical
| Dimensions (diameter x height) | 91.6 x 49.5 mm (3 19/32 x 1 15/16 in.) |
| Weight | 201 g (7.1 oz.) |
| NMEA 2000 drop cable length | 6 m (19 ft. 8 in.) |
| Case material | Fully gasketed, high-impact plastic alloy |
| Compass-safe distance | 150 mm (5.9 in.) |
| Mounting options | Surface, pole (1 in. OD, 14 tpi) or under-deck (fibreglass) |
Environmental
| Water rating | IEC 60529 IPX7 |
| Operating temperature range | -30 to 80C (-22 to 176F) |
General
| Warranty | 2 years |
