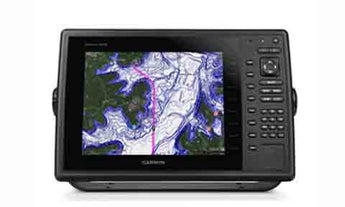

Garmin GPSMAP 1020 10 inch Pushbutton GPS Chartplotter
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 1020 is a 10 inch keyed chartplotter with an 800 x 600 SVGA colour display and a familiar pushbutton interface, giving you a large, clear view of charts and instrument data with controls that work in any conditions. Its internal 10 Hz GPS/GLONASS receiver updates position and heading ten times per second for smooth, dependable navigation.
Preloaded with a worldwide basemap and compatible with BlueChart g2 and g2 Vision plus LakeVu cartography, the 1020 connects through the Garmin Marine Network, NMEA 2000 and NMEA 0183. Add radar, autopilot, networked sonar, SiriusXM weather and other GPSMAP units to build an integrated helm. This is the chart only model with no built in sonar.
PRODUCT DETAILS
- 10 inch SVGA colour display, 800 x 600 resolution, pushbutton control
- Internal 10 Hz GPS/GLONASS receiver for precise position and heading
- Preloaded worldwide basemap, compatible with BlueChart g2 and LakeVu
- Networks via Garmin Marine Network, NMEA 2000 and NMEA 0183
- Supports radar, autopilot, networked sonar and SiriusXM weather
- Chart only model, no built in sonar (networked sonar supported)
- Rugged IPX7 waterproof housing with two SD card slots
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 21.1 x 15.8 cm (8.31 x 6.24 in.), 10 in. diagonal |
| Display resolution | SVGA, 800 x 600 pixels |
| Display type | Colour, pushbutton controlled |
GPS/GNSS
| GPS receiver | Internal 10 Hz GPS/GLONASS |
| Preloaded charts | Worldwide basemap |
General
| Built-in sonar | None; networked sonar supported via compatible Garmin sonar module |
Connectivity
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183 |
| NMEA 2000 LEN | 2 @ 9 Vdc (100 mA max.) |
| Memory card | 2 SD card slots |
Physical
| Dimensions (W x H x D) | 360 x 236 x 75 mm (14.17 x 9.29 x 2.95 in.) |
| Weight | 2.2 kg (4.85 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 30 cm (11.8 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 40 W |
| Typical current draw at 12 Vdc | 2.0 A |
| Max. current draw at 12 Vdc | 4.0 A |
| Fuse | 6 A, fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
